SL 11 164 9 Z

Headers, Male Pins Overview

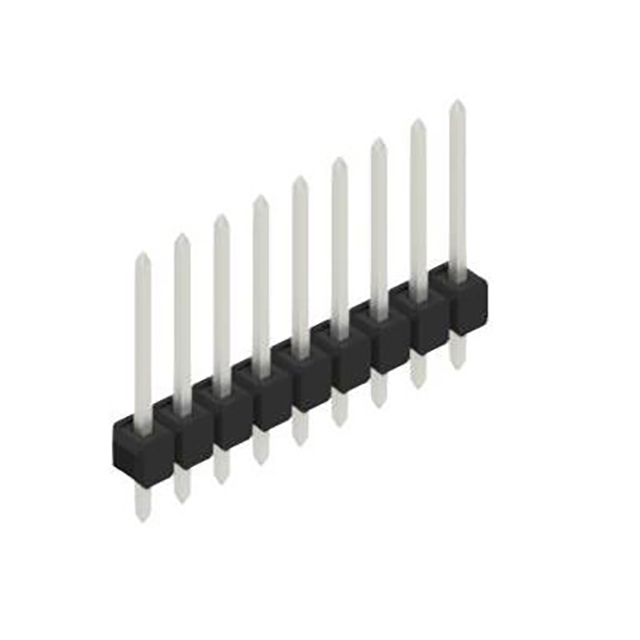

The SL 11 164 9 Z is a male header connector manufactured by Fischer Elektronik. It features a single row with nine positions and a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated copper-tin, designed for through-hole mounting. The connector supports an operating temperature range of -40°C to 163°C and carries a current rating of 3 A. The series designation is SL 11.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact circuit board integration
• Gold contact finish ensures reliable conductivity and corrosion resistance
• Through-hole terminal style provides secure mechanical attachment

Headers, Male Pins Applications

• General electronic interconnects requiring high reliability
• Industrial control systems with standard spacing requirements
• Consumer electronics assemblies needing robust connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's official documentation to confirm exact plating thickness and material specifications. Ensure the required contact count matches the nine-position variant. Cross-reference the thermal ratings with system operational limits to guarantee performance under expected environmental conditions.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required. The 2.54 mm pitch suits standard PCB layouts. Consider the 3 A current rating and 163°C temperature limit for suitability in the target application environment. Verify that the through-hole mounting method aligns with the assembly process.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from one to thirty-six positions. All variants share the same 2.54 mm grid spacing and one-row design philosophy, allowing for scalable connectivity solutions within consistent form factors.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, nine-position count, and gold-plated male pin configuration. Verify that alternative components support the same 3 A current rating and -40°C to 163°C operating temperature range. Ensure the through-hole mounting style is compatible with existing PCB footprints.
