SL 11 190 1 G

Headers, Male Pins Overview

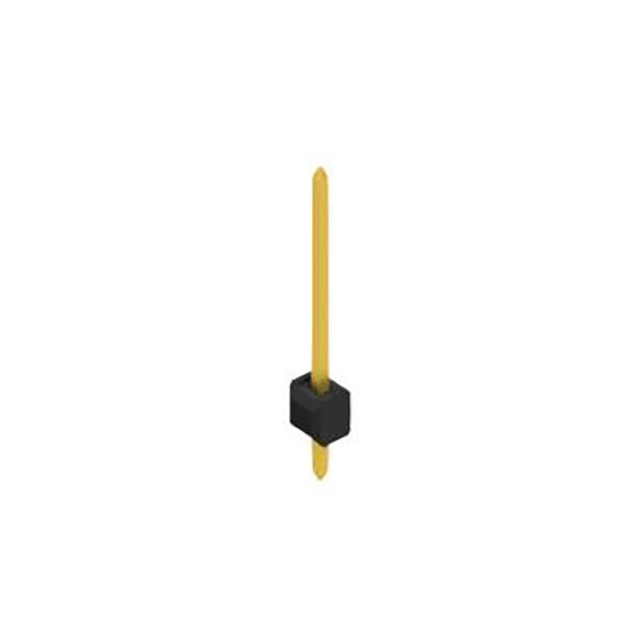

The SL 11 190 1 G is a single-row male pin header manufactured by Fischer Elektronik. It features one position with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole mounting and gold-plated contacts for reliable signal transmission. The insulating body is constructed from polyamide (PA46), providing thermal stability. This component is designed for board-to-board or wire-to-board interconnections in electronic assemblies requiring secure mechanical and electrical connections.

Headers, Male Pins Feature Summary

• Single row configuration with one contact position
• Gold-plated copper tin contacts for corrosion resistance
• Polyamide (PA46) insulation material for thermal endurance
• Through-hole straight mounting style

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Electronic assembly prototyping
• Signal routing in control panels

Headers, Male Pins Procurement Notes

Verify the ordering suffix 'G' confirms gold plating on contacts, as other suffixes may indicate different finishes like tin. Ensure the single-position requirement matches the design layout. Confirm that the through-hole footprint aligns with the PCB drill pattern. Check for RoHS compliance status if required by project specifications. Validate that the PA46 insulation rating meets the operating temperature range of the application environment.

Headers, Male Pins Selection Notes

Select this part when a single-channel connection is required with high reliability due to gold plating. Consider the 2.54 mm pitch compatibility with standard headers and sockets. Evaluate the mechanical strength provided by the through-hole method versus surface mount alternatives. Assess whether the single-row format fits within the available panel space constraints. Compare against multi-position variants if additional channels are needed later.

Headers, Male Pins Part Context

This component belongs to the SL 11 190 series of Fischer Elektronik headers. The series offers various contact counts while maintaining consistent pitch and mounting characteristics. The SL 11 designation indicates a specific housing geometry and contact arrangement standard within the manufacturer's product line. Variants differ primarily by contact count and plating finish options.

Headers, Male Pins Replacement Considerations

Direct substitutes include other single-position 2.54mm male headers with gold plating. Verify that replacement parts match the overall height and contact length specifications. Ensure the insulating material properties are compatible with soldering temperatures. Cross-reference pin dimensions to guarantee mating compatibility with existing sockets or cables.
