SL 11 190 1 S

Headers, Male Pins Overview

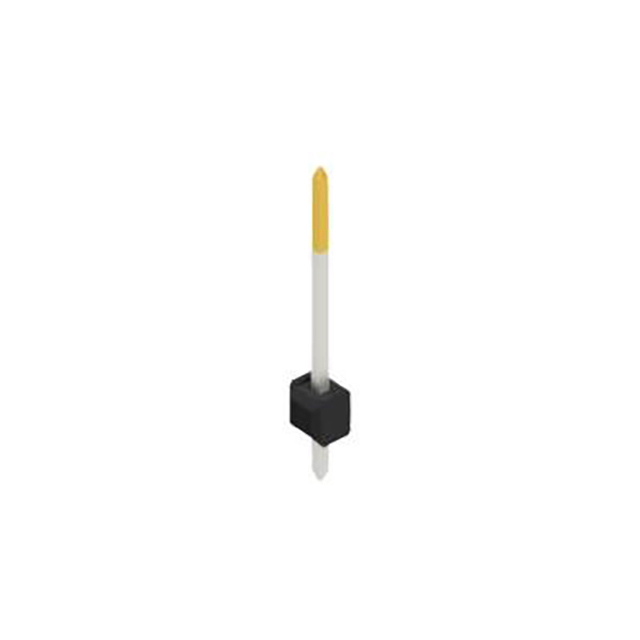

The SL 11 190 1 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) contact pitch and is designed for through-hole mounting on printed circuit boards. The connector utilizes copper-tin alloy contacts with selective tin plating to ensure reliable electrical performance. It is rated for a maximum current of 3 A and a voltage of 250 V, operating within a temperature range of -40°C to +163°C. The housing is constructed from polyamide (PA46), providing mechanical stability and UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or wire-to-board interconnections
• Through-hole termination method ensures secure PCB attachment
• Selective tin plating on copper-tin alloy contacts provides corrosion resistance
• Polyamide insulation housing offers high thermal stability and flame retardancy

Headers, Male Pins Applications

• Industrial control systems requiring robust signal connections
• Consumer electronics assemblies with standard pin spacing requirements
• General-purpose circuit board interconnects
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against project requirements before ordering. Confirm that the through-hole footprint matches the target PCB design. Ensure the selected variant meets the required current and voltage ratings for the intended application environment. Check for any specific plating thickness requirements if harsh environmental conditions are anticipated.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is needed for through-hole assembly. Consider the SL 11 series for applications requiring high reliability and standard industrial specifications. Evaluate the need for additional locking mechanisms or secondary retention features if vibration resistance is critical. Compare alternative contact materials if specific chemical resistance beyond tin plating is required.

Headers, Male Pins Part Context

The SL 11 series represents Fischer Elektronik's standard line of precision male pin headers. These connectors are widely used in various electronic industries due to their standardized dimensions and reliable performance. The SL 11 190 1 S is part of this family, offering a balance of electrical performance and mechanical durability for general interconnect needs.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other manufacturers' single-row male headers with identical 2.54 mm pitch and through-hole termination. Verify compatibility regarding housing height, contact length, and overall profile to ensure proper fit within the enclosure. Cross-reference datasheets for equivalent current and voltage ratings.
