SL 11 190 1 Z

Headers, Male Pins Overview

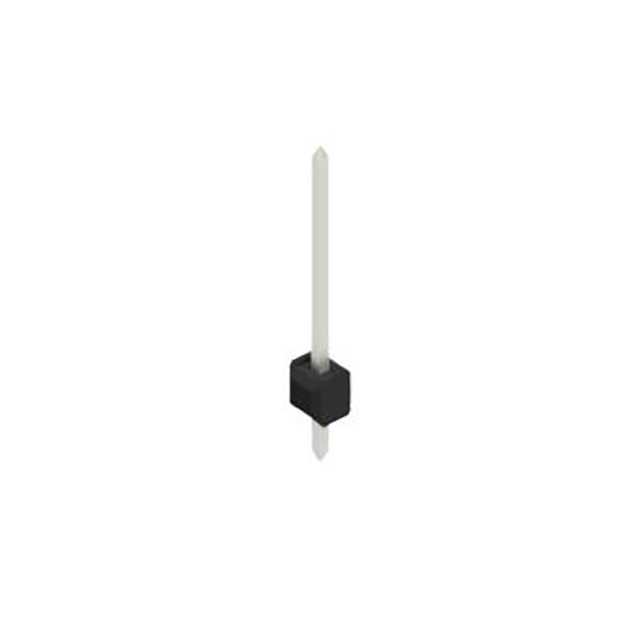

The SL 11 190 1 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) contact pitch and contains one contact position. The connector utilizes through-hole mounting with square-shaped tin-plated contacts made from copper-tin alloy. The housing is constructed from black polyamide (PA46), rated UL94 V-0 for flammability. It supports an operating temperature range of -40°C to +163°C, with a current rating of 3A and voltage rating specified in official documentation.

Headers, Male Pins Feature Summary

• Single-row male pin configuration with 2.54 mm grid spacing
• Through-hole straight mount design for PCB integration
• Tin-plated copper-tin contacts ensuring reliable conductivity
• Black PA46 insulation housing with UL94 V-0 flammability rating

Headers, Male Pins Applications

• General-purpose PCB interconnects
• Prototype development boards
• Low-current signal routing
• Board-to-board or wire-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's latest datasheet to confirm plating thickness and material specifications. Ensure the required contact count matches the single-position design. Confirm that the thermal characteristics align with the intended assembly process temperatures. Cross-reference the UL94 rating with safety compliance requirements for the final application environment.

Headers, Male Pins Selection Notes

Select this component when a minimal footprint single-pin connection is required on a standard 2.54 mm grid PCB. Consider the 3A current rating and -40°C to +163°C temperature range for environmental suitability. Evaluate the through-hole mounting method against available board space and mechanical stress requirements. Compare against multi-pin variants if higher density is needed later.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik male headers. The series offers various contact counts ranging from 1 to 36 positions while maintaining consistent 2.54 mm pitch and housing dimensions. The SL 11 190 1 Z represents the minimum configuration within this family, providing a standardized interface solution for simple connectivity needs without occupying excessive board area.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row male pin format, and through-hole mounting style. Verify compatibility regarding contact material, plating type, and housing flammability rating. Fischer Elektronik models with different suffixes may offer alternative plating options but require confirmation of electrical and mechanical equivalence.
