SL 11 190 10 G

Headers, Male Pins Overview

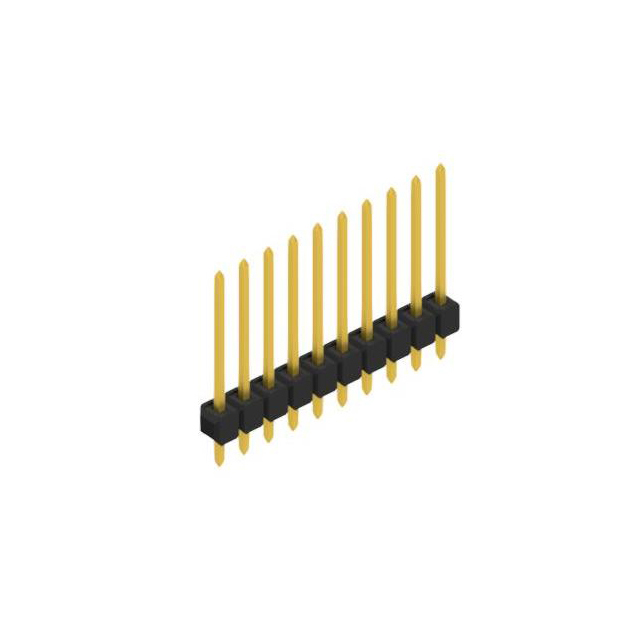

The SL 11 190 10 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) contact pitch and provides 10 positions for circuit interconnection. The component utilizes through-hole termination for secure PCB mounting. Contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The connector supports a rated voltage of 250 V and a current capacity of 3 A, suitable for general-purpose electronic applications requiring robust board-to-board or wire-to-board connections.

Headers, Male Pins Feature Summary

• Gold-plated contacts provide high conductivity and long-term reliability
• Single-row design facilitates compact PCB layout integration
• Through-hole termination ensures mechanical stability during soldering

Headers, Male Pins Applications

• General-purpose board-to-board interconnections
• Wire-to-board signal routing in control panels
• Industrial equipment internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating finish when sourcing. Confirm that the 10-position count matches the target circuit density requirements. Ensure compatibility with standard 2.54 mm mating connectors. Check datasheet specifications for thermal endurance limits relative to your assembly process. Validate that the through-hole footprint aligns with your PCB fabrication capabilities.

Headers, Male Pins Selection Notes

Select this model when a single-row male header with gold contacts is required for low-current signal lines. The 2.54 mm pitch is standard for prototyping and general electronics. Consider the 3 A current rating for power distribution if within limits. Evaluate space constraints as the single-row format occupies minimal board area compared to dual-row alternatives. Ensure environmental conditions do not exceed the specified temperature range.

Headers, Male Pins Part Context

This component belongs to the SL 11 190 series of Fischer Elektronik headers. The series offers various position counts and termination styles. The '190' designation typically relates to specific housing dimensions or series characteristics defined by the manufacturer. This particular variant focuses on standard pitch connectivity with premium contact finishes for enhanced performance in demanding environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 10-position count, and gold-plated male pin configuration. Verify identical through-hole termination methods. Cross-reference housing height and width dimensions to ensure mechanical fit. Confirm equivalent electrical ratings of 250 V and 3 A. Generic equivalents may lack the specific gold plating thickness or UL certification found in the original part.
