SL 11 190 10 S

Headers, Male Pins Overview

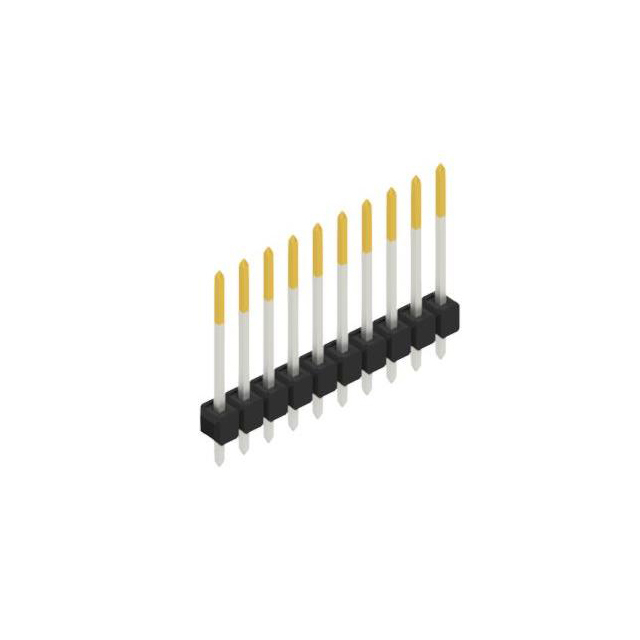

The SL 11 190 10 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and accommodates 10 positions. Designed for through-hole mounting, the connector utilizes copper-tin contacts with a tin-plated finish. The insulation material is polyamide (PA46), nylon 4/6, or glass-filled variants, ensuring stability across an operating temperature range of -40°C to +163°C. Rated for 3A current and 250VAC voltage, it supports board-to-board and wire-to-board interconnections.

Headers, Male Pins Feature Summary

• Single-row configuration with precision-engineered male pins
• Through-hole mounting for secure PCB attachment
• Tin-plated copper-tin contacts for reliable conductivity
• Polyamide-based insulation material for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Industrial equipment signal routing
• General electronic assembly

Headers, Male Pins Procurement Notes

Verify the specific contact plating variant when ordering, as the SL 11 190 series includes options such as tin (Z suffix) and gold/nickel (S suffix). Confirm that the 10-position count matches the design requirement. Ensure the through-hole footprint aligns with the PCB layout. Check the insulation material specification if high-temperature resistance is critical for the application environment.

Headers, Male Pins Selection Notes

Select this model for applications requiring a single-row 2.54 mm pitch male header. The 10-position size fits compact layouts. Verify compatibility with mating female sockets of the same pitch. Consider the 3A current rating for power distribution needs. Ensure the operating temperature range meets environmental conditions. Compare against other series variants if different plating or row counts are required.

Headers, Male Pins Part Context

This component belongs to the SL 11 190 series of precision headers from Fischer Elektronik. The series offers various position counts and plating options. It is designed for general-purpose electronic interconnects. The product line emphasizes reliability in industrial and consumer electronics. Similar parts include other position counts within the same series.
