SL 11 190 10 Z

Headers, Male Pins Overview

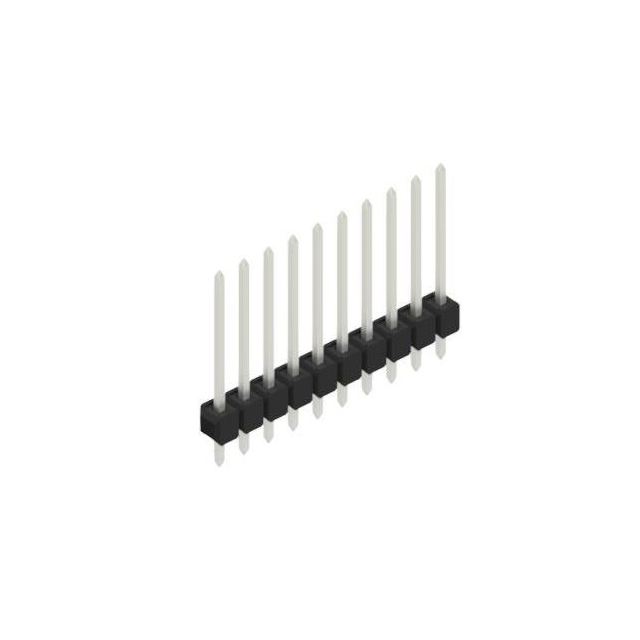

The SL 11 190 10 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and accommodates 10 positions in a through-hole mounting configuration. The contacts are square-shaped pins made of copper-tin alloy, finished with tin plating for mating surfaces. Key dimensions include an overall contact length of 0.748 inches (19.00 mm), a contact length for mating of 0.520 inches (13.21 mm), and an insulation height of 0.110 inches (2.80 mm). The housing utilizes polyamide (PA46) material.

Headers, Male Pins Feature Summary

• Through-hole mounting design for secure PCB attachment
• Tin-plated square contact pins for reliable conductivity
• Polyamide insulation housing for structural integrity

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board connectivity systems
• Wire-to-board assembly applications

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 190 10 Z against official Fischer Elektronik documentation to confirm compatibility with your design requirements. Ensure that the through-hole footprint matches your PCB layout specifications. Check for any updated revision codes or suffixes that may indicate variations in packaging or minor manufacturing updates. Confirm that the tin plating thickness meets your corrosion resistance needs for the intended operating environment.

Headers, Male Pins Selection Notes

Select this component when a single-row, 10-position male header with a 2.54 mm pitch is required. The through-hole technology ensures robust mechanical stability compared to surface-mount alternatives. Consider the square pin shape and tin finish for standard mating interfaces. Verify that the insulation height and overall length fit within your enclosure constraints. This series offers a standardized solution for reliable electrical connections in compact assemblies.

Headers, Male Pins Part Context

The SL 11 190 series represents Fischer Elektronik's line of precision male pin headers designed for various electronic applications. These connectors are characterized by their consistent 2.54 mm spacing and durable construction. The SL 11 190 10 Z specifically denotes a variant with ten contacts, maintaining the series' standard dimensions and material properties while providing the necessary connection points for specific circuit designs.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik's official cross-reference guides for direct substitutes. Generic equivalents may match the 2.54 mm pitch and 10-position count but might differ in insulation material, contact finish, or mechanical retention strength. Verify that any replacement maintains the same through-hole mounting style and square pin profile to ensure proper mating with existing sockets or cables.
