SL 11 190 11 S

Headers, Male Pins Overview

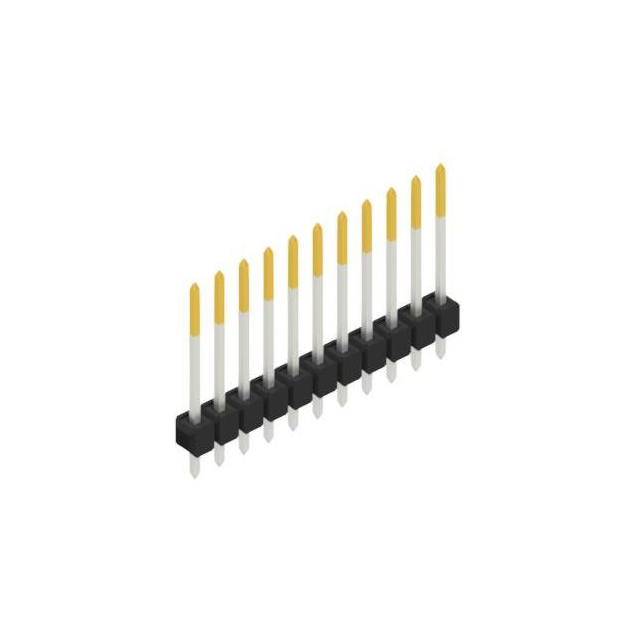

The SL 11 190 11 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 11 contacts. The component is designed for through-hole mounting on printed circuit boards. The housing utilizes polyamide insulation, and the contacts are constructed from copper with a tin plating finish. This specific variant belongs to the SL 11 190 series, characterized by straight pin orientation and standard board-to-board or wire-to-board interconnection capabilities.

Headers, Male Pins Feature Summary

• Single-row configuration with straight male pins for reliable through-hole PCB integration
• Polyamide insulation material providing structural stability and electrical isolation
• Tin-plated copper contacts ensuring corrosion resistance and stable conductivity

Headers, Male Pins Applications

• General-purpose electronic equipment signal routing
• Industrial control system board interconnections
• Consumer electronics assembly modules

Headers, Male Pins Procurement Notes

Verify the exact suffix 'S' against the manufacturer's official datasheet to confirm contact plating specifications and insulation material properties. Ensure the ordering part number matches the required pin count and pitch exactly. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement documentation.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Confirm that the 11-position capacity aligns with the circuit design. Verify that the straight pin profile fits within the mechanical envelope constraints of the target assembly without interference.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 190 series of PCB headers. The series offers various pin counts and plating options. The SL 11 190 11 S specifically denotes an 11-position variant with tin plating, distinguishing it from gold-plated or different row configurations within the broader product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 190 series headers with identical 2.54 mm pitch and 11 positions. Ensure replacement parts maintain the same through-hole mounting style and straight pin orientation for mechanical compatibility.
