SL 11 190 11 Z

Headers, Male Pins Overview

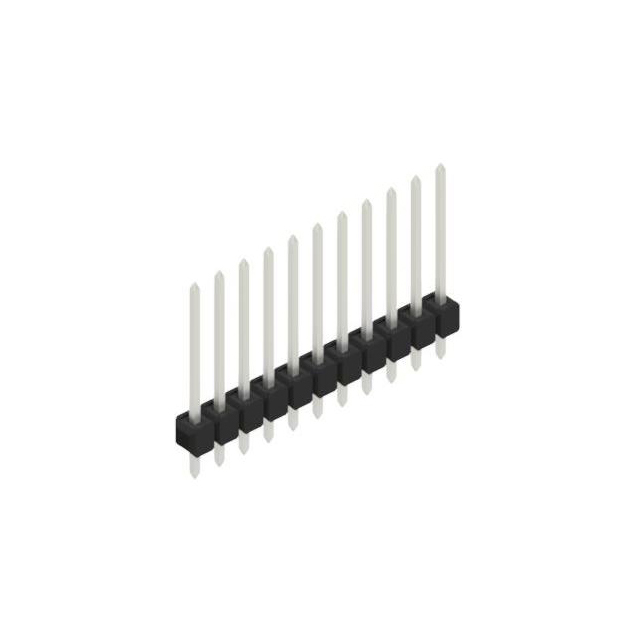

The SL 11 190 11 Z is a single-row through-hole pin header manufactured by Fischer Elektronik. It features 11 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes square male pins made of copper-tin alloy, finished with tin plating on both the post and mating surfaces. The insulation material is glass-filled polyamide (PA46/nylon). Key dimensions include a contact length of 0.520 inches for mating and 0.118 inches for the post.

Headers, Male Pins Feature Summary

• Single-row straight pin header design for board-to-board or wire-to-board connections
• Square male pin configuration ensuring secure mechanical retention
• Glass-filled polyamide insulation providing structural stability

Headers, Male Pins Applications

• General electronic interconnects
• PCB assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and pitch. Ensure compatibility with mating socket connectors regarding pin geometry and insulation height. Check RoHS compliance status if required for your specific application regulations.

Headers, Male Pins Selection Notes

Select this component when a single-row, 11-position through-hole header is required. The 2.54 mm pitch is standard for general-purpose electronics. Consider the glass-filled PA46 insulation for applications requiring higher thermal resistance compared to standard nylon variants.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of pin headers from Fischer Elektronik. The series offers various contact counts while maintaining consistent pitch and housing dimensions. It is designed for reliable electrical connection in compact PCB layouts.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, 11 positions, and through-hole mounting style. Verify that alternative manufacturers offer square pins and similar insulation materials to ensure mechanical fit.
