SL 11 190 12 G

Headers, Male Pins Overview

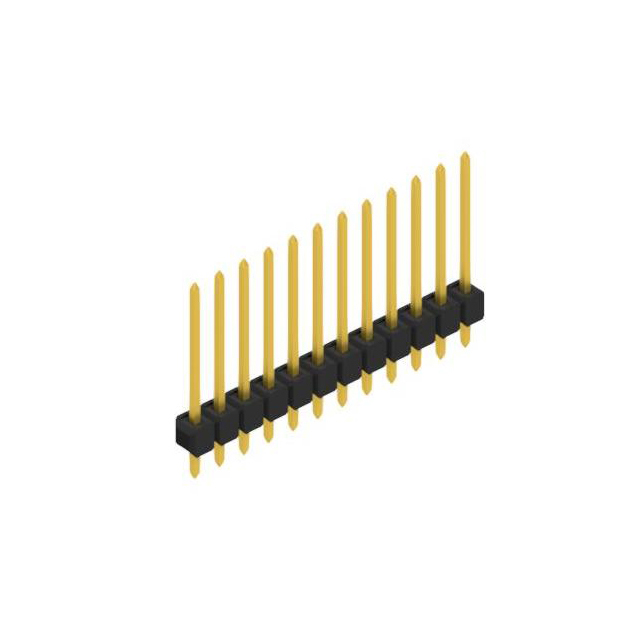

The SL 11 190 12 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 12-position configuration with a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the connector utilizes square pins made of copper-tin alloy with tin plating. The insulating body is constructed from PA 4.6 glass-filled polyamide. Electrical specifications include a nominal current of 3 A and a nominal voltage of 250 V AC, with a test voltage rating of 2000 V.

Headers, Male Pins Feature Summary

• Through-hole straight pin header design for reliable board-to-board or wire-to-board connections
• Insulating body fabricated from PA 4.6 glass-filled polyamide for thermal stability
• Copper-tin alloy contacts with tin surface treatment ensuring corrosion resistance

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify that the specific order suffix 'G' corresponds to the required tin-plated contact finish as documented in official Fischer Elektronik datasheets. Confirm that the PA 4.6 GF insulating material meets the thermal requirements of the intended soldering process. Ensure the through-hole straight form factor aligns with the PCB layout constraints and mechanical clearance specifications of the target application environment.

Headers, Male Pins Selection Notes

Select this component when a 12-position single-row header is required for standard 2.54 mm pitch applications. The choice is appropriate for circuits operating within the 3 A nominal current and 250 V AC limits. Consider the PA 4.6 insulation material for environments requiring robust thermal performance during reflow soldering processes. Validate that the square pin geometry suits the mating connector interface requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of PCB connectors from Fischer Elektronik. The series offers various position counts while maintaining consistent 2.54 mm pitch dimensions. The SL 11 190 12 G represents the twelve-contact variant within this standardized product line, designed for general-purpose electronic interconnectivity.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct cross-references. Verify compatibility with mating sockets regarding pin geometry and pitch before substituting.
