SL 11 190 12 S

Headers, Male Pins Overview

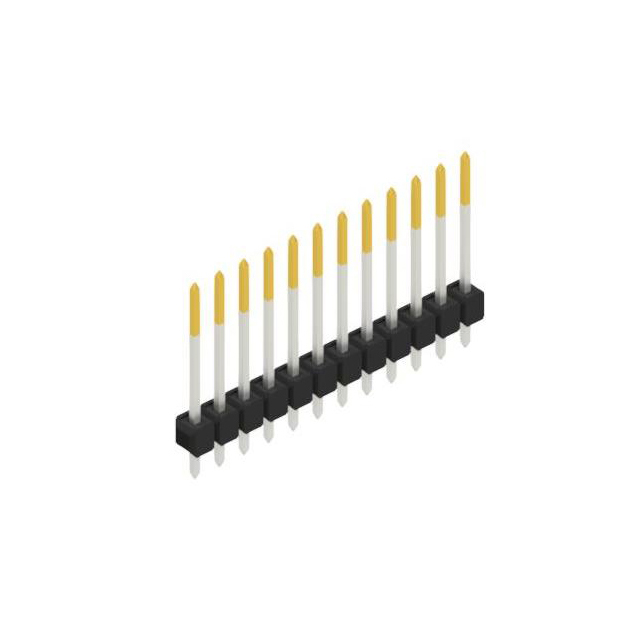

The SL 11 190 12 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch with 12 positions arranged in a straight through-hole configuration. The contacts are tin-plated copper alloy pins, providing a mating contact length of 13.2 mm and a column length of 3.0 mm. The total contact length measures 19.0 mm. The insulator is constructed from polyamide (PA46/nylon 4/6) with a UL 94 V-0 flammability rating. Operating temperature ranges from -40°C to +163°C, with soldering capability at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered one-row male pin header designed for board-to-board or wire-to-board interconnections
• Utilizes a push-pull fastening type mechanism for secure connection stability
• Constructed with high-reliability tin-plated contacts housed in flame-retardant polyamide insulation

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly applications
• Industrial electronic equipment interfaces
• General purpose circuit board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure the required contact count matches the 12-position configuration. Confirm that the through-hole mounting style aligns with the target PCB design constraints. Cross-reference the operating temperature range with environmental requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, straight male header with a 0.635 mm pitch is required. The 12-position count must match the circuit interface needs. Consider the through-hole mounting method and the -40°C to +163°C operating range. Verify that the tin-plated contact finish meets the corrosion resistance and conductivity requirements for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of precision connectors from Fischer Elektronik. The series offers various position counts while maintaining consistent 0.635 mm pitch and mechanical dimensions. The '12' indicates the specific contact count, and 'S' denotes the tin-plated variant within the product line. These headers are engineered for reliable electrical performance in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 190 series headers with identical 0.635 mm pitch and 12 positions. Verify compatibility regarding mounting style, contact plating, and insulator material. Generic equivalents may differ in push-pull mechanism engagement force or thermal endurance limits.
