SL 11 190 12 Z

Headers, Male Pins Overview

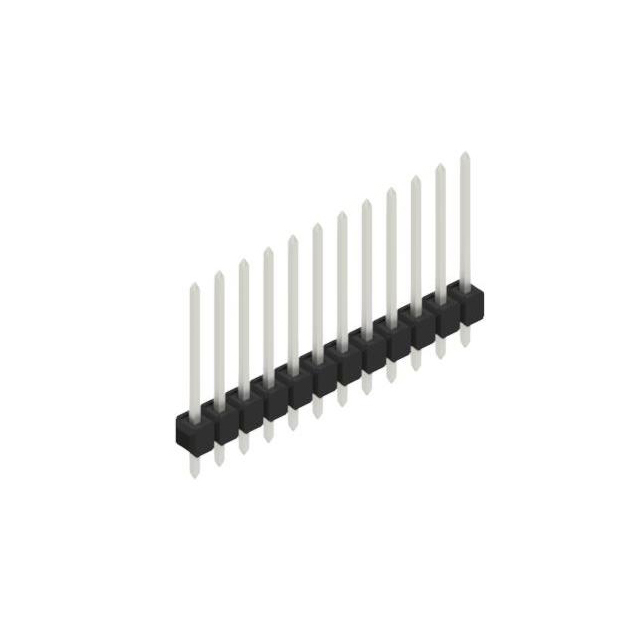

The SL 11 190 12 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 12 positions designed for through-hole mounting. The connector utilizes copper-tin contact material with tin plating on both the mating and post sections. The insulation is constructed from glass-filled polyamide (PA46), rated UL94 V-0, supporting an operating temperature range of -40°C to 163°C.

Headers, Male Pins Feature Summary

• Single-row configuration with square-shaped male pins for reliable board-to-board or wire-to-board connections.
• Glass-filled polyamide insulation provides structural integrity and UL94 V-0 flammability rating.
• Tin-plated contacts ensure consistent conductivity and corrosion resistance in standard electronic assemblies.

Headers, Male Pins Applications

• Through-hole PCB interconnections
• Board-to-board signal routing
• Wire-to-board termination

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm tin plating specifications and exact dimensional tolerances. Ensure the 12-position count matches the design requirement, as the SL 11 190 series offers various contact counts. Confirm that the 2.54 mm pitch aligns with the target PCB footprint and mating connector standards.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header with 12 contacts is required. The 2.54 mm pitch is standard for general-purpose electronics. Consider the -40°C to 163°C operating range for environmental suitability. The glass-filled PA46 insulation is suitable for applications requiring high mechanical stability and flame retardancy.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of precision-engineered pin headers from Fischer Elektronik. The series is characterized by its compact design and reliable electrical performance. Variants within the series differ primarily in the number of contacts and contact surface finishes, allowing for flexible integration into various electronic systems.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 12-position count, 2.54 mm pitch, single-row layout, and through-hole mounting style. Verify that alternative manufacturers offer compatible tin-plated contacts and similar thermal ratings if cross-referencing with other brands.
