SL 11 190 13 G

Headers, Male Pins Overview

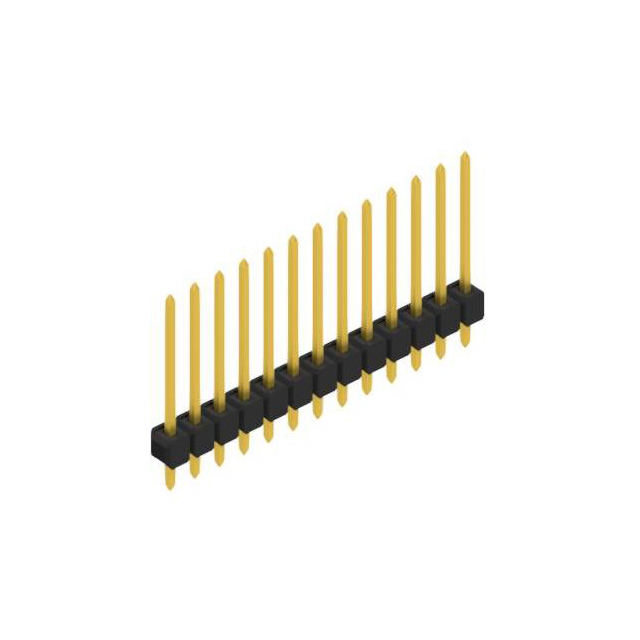

The SL 11 190 13 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 13 positions and a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, the contacts are made of copper-tin with tin plating. The connector utilizes polyamide (PA46) insulation and has a square contact shape. Key dimensions include an overall contact length of 19.00 mm, a mating contact length of 13.21 mm, and a column contact length of 3.00 mm.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Through-hole mounting style with straight orientation
• Tin-plated copper-tin contacts for reliable conductivity
• Polyamide (PA46) insulation material for structural stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Board-to-board signal transmission
• Wire-to-board connection assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the required contact count matches the 13-position configuration. Confirm that the through-hole mounting style aligns with the target PCB layout requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. The 13-contact count suits moderate-density interconnect needs. Consider the PA46 insulation and tin plating for standard environmental conditions. Verify mechanical fit within the assembly constraints regarding height and spacing.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which comprises rectangular male pin headers. The series offers various contact counts and configurations for different interconnection densities. These connectors are designed for robust performance in general electronic equipment requiring reliable signal and power transmission between boards or wires.
