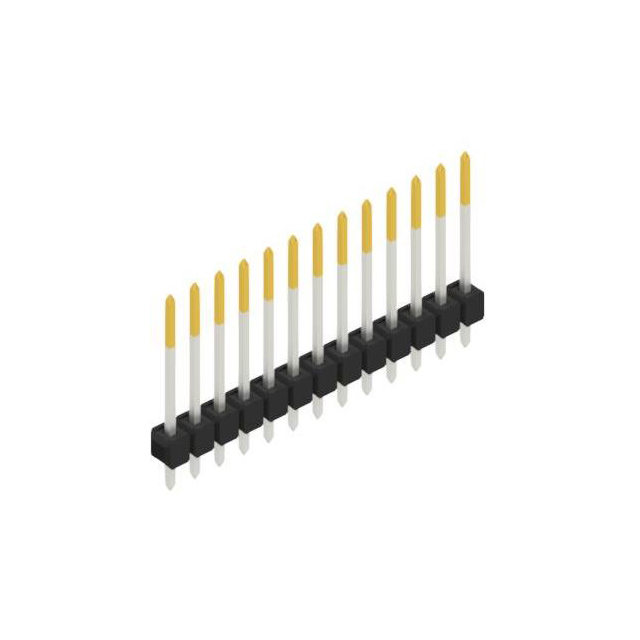

SL 11 190 13 S

Headers, Male Pins Overview

The SL 11 190 13 S is a single-row male pin header manufactured by Fischer Elektronik. It features 13 positions with a 2.54 mm (0.100 inch) mating pitch. The connector utilizes through-hole termination and square contact shapes. Contact materials consist of copper-tin, with tin plating on both mating and post surfaces. The insulating body is made of PA 4.6 GF. Electrical specifications include a nominal current of 3 A, nominal voltage of 250 V AC, and a test voltage of 2000 V. Volume resistance is rated at ≤5 mΩ.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Through-hole mounting style with square contact geometry
• Tin-plated copper-tin contacts ensuring reliable conductivity
• PA 4.6 GF insulating body providing structural stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• PCB assembly for signal routing
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer datasheet to confirm dimensional tolerances and insulation height requirements. Ensure the ordering part number matches the exact 13-position count and single-row layout. Cross-reference the tin plating thickness and material composition with project specifications to guarantee compatibility with mating connectors and environmental conditions.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole PCB integration. Consider the 3 A current rating and 250 V voltage limit for electrical safety margins. Verify that the PA 4.6 GF material meets thermal and mechanical requirements for the intended operating environment. Confirm physical dimensions align with available board space and mating connector interfaces.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connection systems from Fischer Elektronik. The series offers various position counts and row configurations. The SL 11 190 13 S specifically denotes a 13-position variant within this standardized line of male headers designed for robust electronic interconnects.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not provided in the source data. Consult Fischer Elektronik technical support or authorized distributors for verified cross-references matching the 13-position, 2.54 mm pitch specification.
