SL 11 190 13 Z

Headers, Male Pins Overview

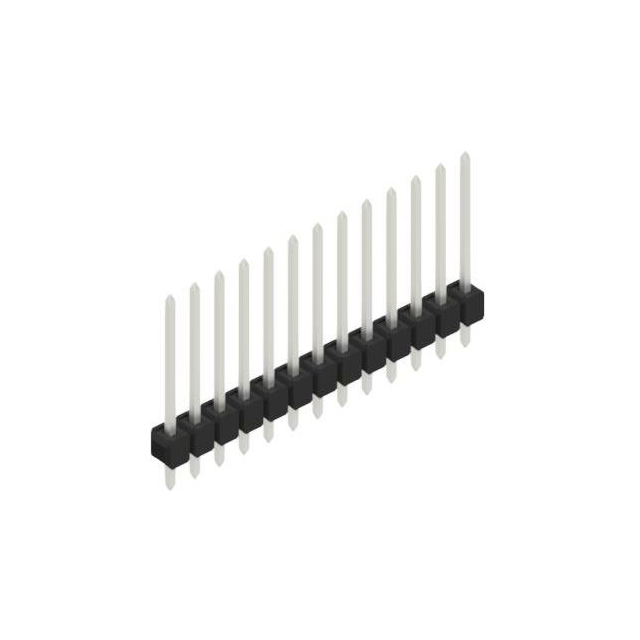

The SL 11 190 13 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 13 positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper-tin alloy and finished with tin plating to ensure reliable electrical connectivity. The insulating body utilizes polyamide (PA46), specifically nylon 4/6 reinforced with glass fillers, providing structural stability and thermal resistance. This component supports an operating temperature range of -40°C to +163°C and withstands soldering conditions at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Glass-filled PA46 insulation material ensures high thermal stability and mechanical strength
• Tin-plated copper-tin contacts provide durable corrosion resistance
• Straight through-hole design facilitates standard PCB assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• Wire-to-board connections within electronic enclosures
• Signal routing in equipment requiring extended temperature tolerance

Headers, Male Pins Procurement Notes

Verify the specific contact finish requirements against application needs, as datasheets may list variations such as gold or nickel options alongside tin. Confirm that the glass-filled PA46 insulation rating aligns with the thermal profile of the intended soldering process. Ensure the straight pin configuration matches the board layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust, single-row connector is required for environments with significant thermal fluctuations. The glass-filled polyamide construction offers superior heat resistance compared to standard nylon variants. Consider the 2.54 mm pitch compatibility with existing mating connectors and verify that the 13-position count fits the available space on the target circuit board without obstruction.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of headers from Fischer Elektronik, which specializes in high-reliability interconnect solutions. The series typically includes various pin counts and row configurations to accommodate different density requirements. The SL 11 190 13 Z represents a specific variant optimized for applications demanding stable performance across wide temperature ranges, distinguishing it from standard commercial-grade connectors.

Headers, Male Pins Replacement Considerations
