SL 11 190 14 G

Headers, Male Pins Overview

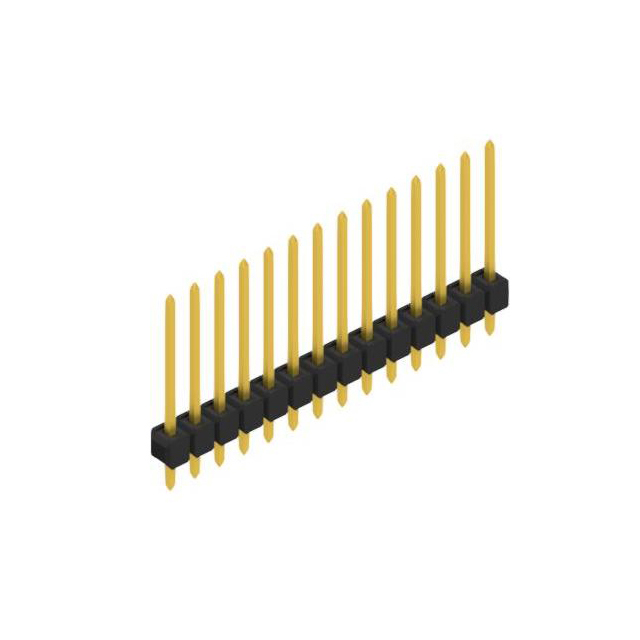

The SL 11 190 14 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) contact pitch and contains 14 positions. The component utilizes a through-hole mounting style with straight termination for PCB integration. Contact surfaces are finished with gold plating over nickel, ensuring reliable electrical performance. The insulating body is constructed from PA 4.6 material, providing thermal stability within an operating range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for board-to-board or wire-to-board connections
• Gold-plated contacts over nickel substrate for enhanced corrosion resistance and conductivity
• PA 4.6 insulating body rated for high-temperature environments up to 163°C

Headers, Male Pins Applications

• High-density electronic assemblies requiring robust interconnects
• Industrial control systems operating in elevated temperature conditions
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' confirms gold plating specifications against the official datasheet. Ensure the 14-position count matches the design requirement. Confirm PA 4.6 insulation compatibility with soldering profiles. Check RoHS compliance status if required by project standards. Validate lead time availability directly with Fischer Elektronik distributors.

Headers, Male Pins Selection Notes

Select this model when a single-row, 14-pin male header with gold contacts is required. The 2.54 mm pitch is standard for general-purpose electronics. Consider the high-temperature rating of PA 4.6 for applications exceeding standard nylon limits. Ensure mechanical clearance allows for the specified straight through-hole installation geometry on the target PCB layout.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series of PCB connectors. The SL 11 variant specifically denotes a single-row male header design. The numeric sequence indicates the physical dimensions and pin count variations within the product family. This series is engineered for durable industrial and commercial electronic interconnections.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 14-pin count, 2.54 mm pitch, single-row male configuration, and gold-plated contact finish. Verify that alternative components support the same PA 4.6 insulation material and -40°C to +163°C temperature range. Cross-reference mechanical drawings for identical mounting hole patterns and overall height constraints.
