SL 11 190 14 Z

Headers, Male Pins Overview

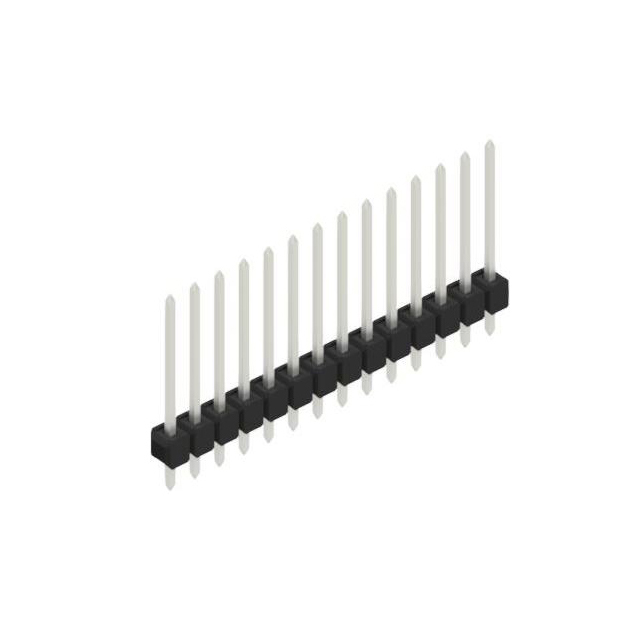

The SL 11 190 14 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 14 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole mounting for secure PCB attachment. Contacts are made of copper alloy with tin plating to ensure reliable electrical conductivity and corrosion resistance. The housing is constructed from polyamide (PA46), providing mechanical stability and thermal endurance. This component is designed for standard board-to-board or wire-to-board interconnections in electronic assemblies requiring robust signal transmission.

Headers, Male Pins Feature Summary

• Single-row configuration with straight male pins for direct PCB insertion
• Polyamide insulation housing offering structural integrity and heat resistance
• Tin-plated copper contacts ensuring stable electrical performance
• Through-hole termination method for durable mechanical fixation

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Signal routing in industrial control modules
• Prototype development and testing fixtures
• Consumer electronics assembly boards

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the required circuit design, as the series offers various pole configurations. Confirm that the through-hole mounting style aligns with the target PCB fabrication capabilities. Ensure the tin-plated contact finish meets the environmental requirements for the intended operating conditions. Cross-reference the official datasheet for precise dimensional tolerances before finalizing the bill of materials.

Headers, Male Pins Selection Notes

Choose this model when a single-row, 2.54 mm pitch header is required for low-to-medium current applications. The tin-plated contacts are suitable for general environments but may not suffice for highly corrosive settings without additional protection. Consider the overall height and insertion depth constraints within the enclosure design. Compare against other series if higher density or different termination methods like surface mount are needed.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of pin headers from Fischer Elektronik. The series is characterized by its standardized 2.54 mm pitch and single-row layout. Variants within the series differ primarily by the number of contacts, allowing designers to select the exact pin count required for their specific application while maintaining consistent mechanical and electrical characteristics across the product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers from the same SL 11 190 series with identical pitch and row count. Generic equivalents must match the 2.54 mm spacing, through-hole termination, and single-row male pin configuration. Verify that alternative components meet the same material specifications for insulation and contact plating to ensure compatibility.
