SL 11 190 15 S

Headers, Male Pins Overview

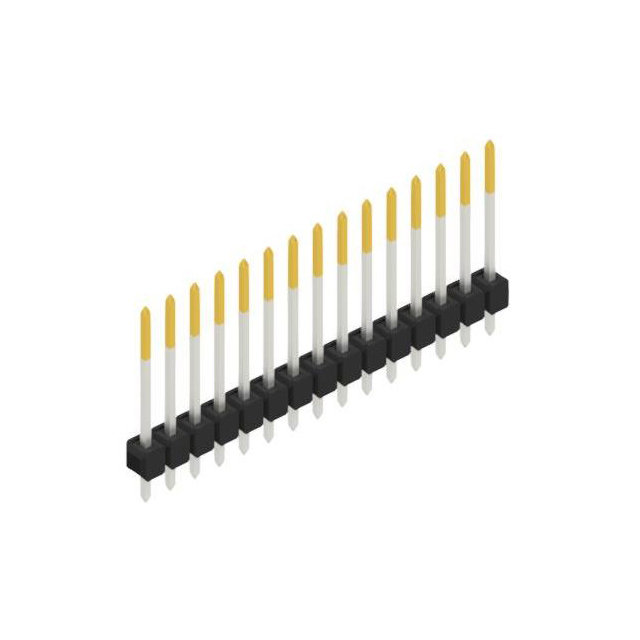

The Fischer Elektronik SL 11 190 15 S is a single-row male header connector designed for through-hole mounting. It features 15 positions with a 0.635 mm (0.025 inch) pitch. The contacts are made of copper alloy and finished with gold plating over nickel, ensuring reliable conductivity and corrosion resistance. The insulating housing is constructed from polyamide (PA46), providing thermal stability and mechanical strength. This component supports standard PCB assembly processes.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct board insertion
• Gold-plated contacts over nickel base for enhanced durability
• Polyamide insulation material rated for high-temperature soldering

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• PCB-to-PCB communication links
• Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's official datasheet to confirm contact finish specifications, as suffixes often denote critical variations in plating or material composition. Ensure compatibility with mating connectors regarding pitch and row count before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for dense PCB layouts. The 0.635 mm pitch allows for higher contact density compared to standard 2.54 mm headers. Consider the gold plating for applications requiring frequent mating cycles or harsh environmental conditions.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of male headers from Fischer Elektronik. The series offers various position counts and contact finishes. The '190' designation typically refers to the specific housing dimensions and row style within the product family, distinguishing it from other series like SL 4 or SL 11 124.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 15-position count, 0.635 mm pitch, and through-hole mounting style. Verify that alternative manufacturers offer identical gold-over-nickel contact finishes and compatible PA46 insulation materials to ensure mechanical and electrical interchangeability.
