SL 11 190 15 Z

Headers, Male Pins Overview

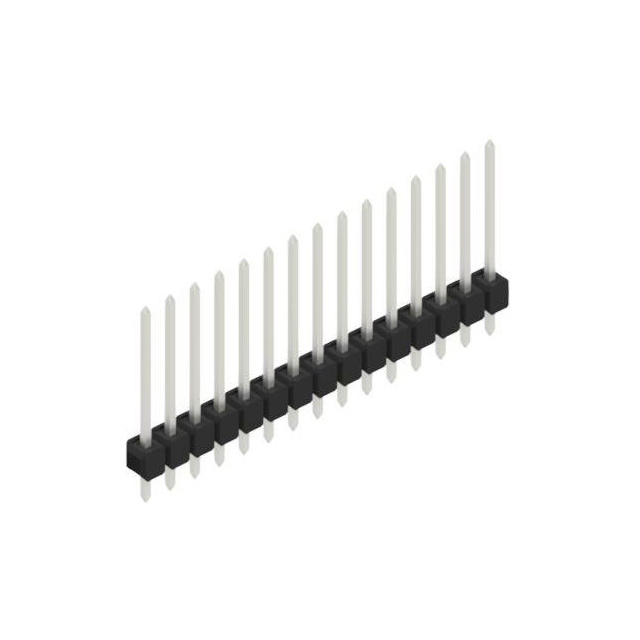

The Fischer Elektronik SL 11 190 15 Z is a single-row male pin header connector designed for through-hole PCB mounting. It features 15 positions with a 2.54 mm (0.100 inch) pitch. The contacts are made of copper-tin alloy with a tin plating finish, providing reliable electrical conductivity. The insulating body utilizes PA 4.6 GF material, ensuring structural integrity and thermal stability. This component supports nominal currents up to 3 A and withstands test voltages of 2000 V, suitable for general electronic interconnection applications requiring robust mechanical and electrical performance.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard through-hole assembly
• Tin-plated copper-tin contacts for corrosion resistance and conductivity
• PA 4.6 GF insulating body for enhanced thermal and mechanical stability

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system circuit boards
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against official Fischer Elektronik documentation to confirm contact surface treatment and material specifications. Ensure compatibility with target PCB hole dimensions and mating connector requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm that the tin-plated finish meets the required environmental and soldering standards for the intended application.

Headers, Male Pins Selection Notes

Select this connector when a single-row, 2.54 mm pitch male header is required for through-hole mounting. Consider the 15-position count and PA 4.6 GF insulation material for applications needing moderate current capacity and thermal resistance. Evaluate the tin-plated contact finish against environmental exposure conditions. Compare against other series variants if different row counts or contact materials are necessary for the design.

Headers, Male Pins Part Context

The SL 11 190 series represents Fischer Elektronik's line of rectangular male pin headers. These connectors are engineered for versatile PCB interconnection tasks. The SL 11 190 15 Z variant specifically denotes a 15-position configuration within this family. The series emphasizes reliability through standardized pitches and durable insulating materials, catering to diverse industrial and commercial electronic manufacturing needs.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for direct substitutes with identical pitch and position counts. Verify cross-compatibility with mating sockets from other manufacturers based on dimensional tolerances. Ensure replacement parts match the original contact material and plating specifications to maintain electrical performance.
