SL 11 190 16 G

Headers, Male Pins Overview

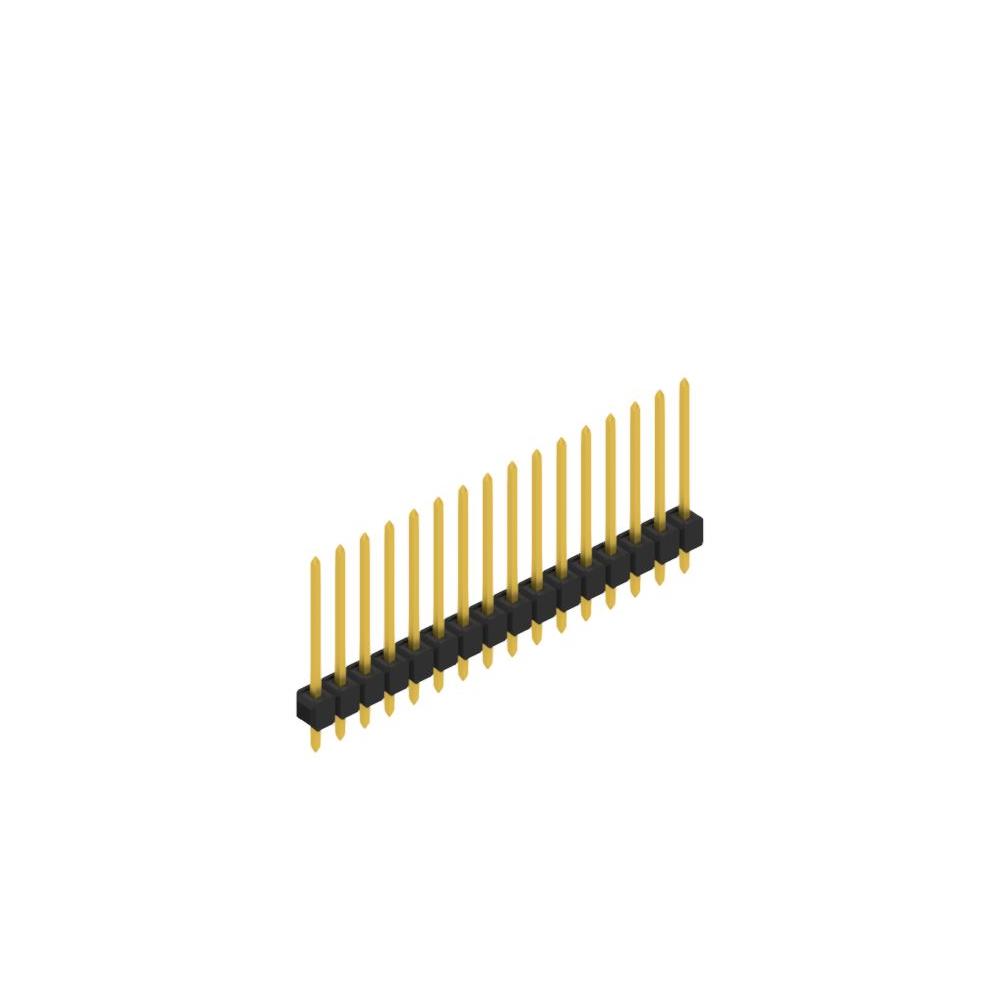

The SL 11 190 16 G is a single-row male pin header manufactured by Fischer Elektronik. It features 16 positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The connector utilizes square contact shapes and polyamide insulation material. Key dimensions include an overall contact length of 19.00 mm and an insulation height of 2.80 mm. This component is rated for a maximum voltage of 250VAC and a current of 3A, operating within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Gold-plated contacts provide durable electrical performance and oxidation resistance
• Through-hole mounting style ensures secure mechanical attachment to PCBs
• Square contact shape aids in precise alignment during assembly

Headers, Male Pins Applications

• General-purpose electronic equipment interconnects
• Industrial control system wiring
• Consumer electronics assembly
• Test and measurement device interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required contact finish and row count. Confirm that the 16-position variant aligns with the design footprint. Ensure the through-hole package type is compatible with the manufacturing process. Cross-reference the manufacturer part number against official distributor catalogs to avoid substitution errors. Check for any specific handling requirements regarding electrostatic discharge protection during storage and installation.

Headers, Male Pins Selection Notes

Select this component when a single-row, 16-pin male header with 2.54mm pitch is required. The gold plating is suitable for applications demanding high reliability and low contact resistance. Consider the thermal rating and voltage specifications to ensure compliance with the target circuit environment. Verify that the physical dimensions fit within the available space constraints on the printed circuit board layout.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various position counts and configurations for different connectivity needs. The SL 11 190 16 G specifically addresses the need for a compact, reliable connection point in dense circuit designs. It complements other connectors in the family by providing standardized spacing and robust construction.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 16-position count, 2.54mm pitch, single-row layout, and gold-plated contact finish. Verify that alternative manufacturers offer identical mechanical dimensions and electrical ratings. Ensure the replacement part supports through-hole mounting with compatible soldering profiles. Confirm insulation material properties meet the same thermal and dielectric standards.
