SL 11 190 16 S

Headers, Male Pins Overview

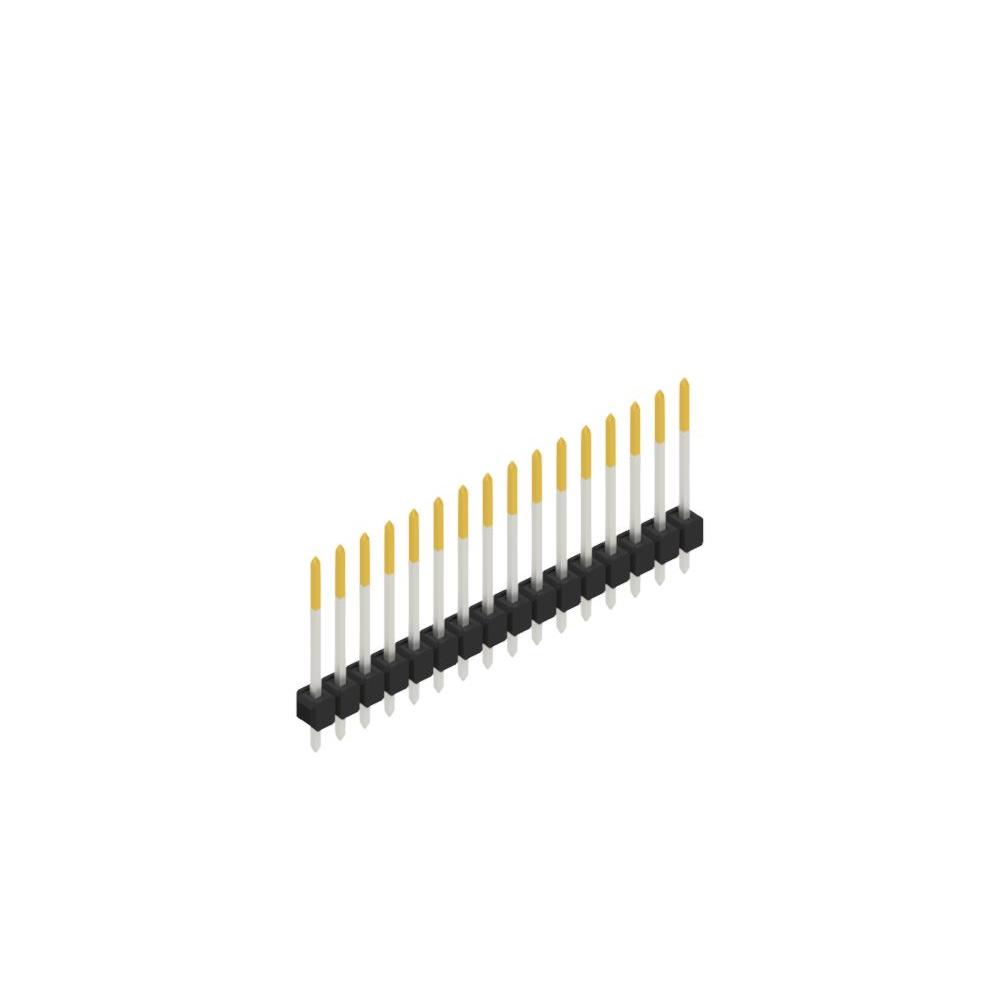

The SL 11 190 16 S is a single-row male header connector manufactured by Fischer Elektronik. It features 16 positions with a 2.54 mm (0.100 inch) pitch and utilizes through-hole termination for PCB mounting. The contacts are constructed from copper-tin alloy, providing reliable conductivity. The mating surface is finished with gold plating at a thickness of 157.5 µin (4.00 µm), while the post section is tin-plated. This component is designed for secure electrical interconnections in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Gold-plated mating contacts ensure corrosion resistance and stable signal transmission
• Through-hole technology compatible design for robust mechanical fixation on printed circuit boards

Headers, Male Pins Applications

• General-purpose electronic equipment interconnects
• Industrial control system circuit boards
• Consumer electronics assembly modules

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' corresponds to the required gold contact finish, as other variants like 'Z' or 'G' may feature tin or nickel-gold plating. Confirm the 16-position count matches the design requirement. Ensure the through-hole footprint aligns with the PCB layout specifications before ordering.

Headers, Male Pins Selection Notes

Select this model when high-cycle durability and low contact resistance are critical due to the gold plating. Compare against tin-plated alternatives if cost reduction is prioritized over long-term oxidation protection. Verify that the 2.54 mm pitch fits the available board spacing constraints.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of rectangular male headers. The series offers various position counts and contact finishes to suit different environmental and electrical requirements. The SL 11 190 16 S specifically denotes the 16-position variant within this standardized product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include SL 11 190 16 Z (tin-plated) or SL 11 190 16 G (nickel-gold plated). These share identical mechanical dimensions but differ in contact material properties. Cross-reference datasheets to ensure compatibility with mating connectors.
