SL 11 190 21 Z

Headers, Male Pins Overview

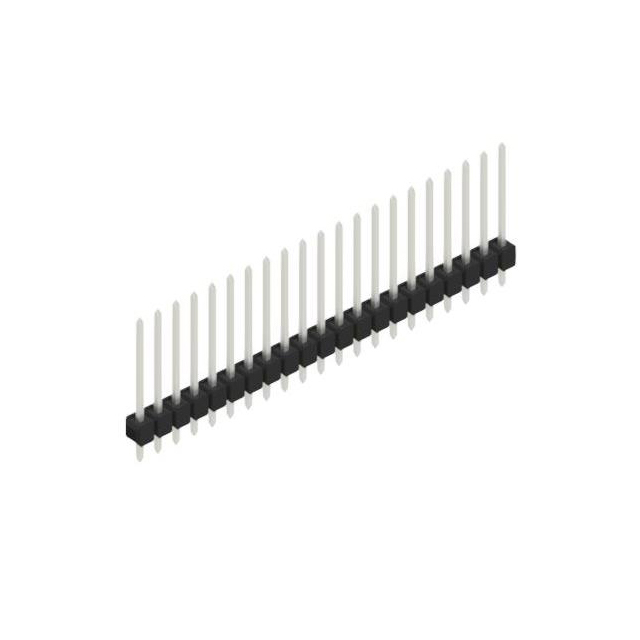

The SL 11 190 21 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 21 positions with a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the connector utilizes square-shaped contacts made of copper-tin alloy. The contact surfaces are tin-plated to ensure reliable electrical connections. The total contact length measures 0.748 inches (19.00 mm), with an insulating height of 0.110 inches (2.80 mm). The component is currently active and packaged in bulk.

Headers, Male Pins Feature Summary

• Single-row configuration with 21 positions for standardized circuit board integration
• Through-hole mounting design ensuring mechanical stability on printed circuit boards
• Tin-plated copper-tin alloy contacts providing corrosion resistance and conductivity

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring standard pin headers
• Industrial control systems utilizing through-hole interconnects
• Consumer electronics manufacturing processes

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 190 21 Z against official Fischer Elektronik documentation to confirm current availability and exact specifications. Ensure that the required contact count and pitch match your design requirements before ordering. Check for any RoHS compliance certifications if necessary for your application standards. Confirm packaging details such as bulk quantity upon request from authorized distributors.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 21 pins and 2.54 mm spacing is required. Consider the through-hole mounting style for applications needing robust mechanical fixation. Evaluate the tin-plated contact finish for suitable environmental conditions. Compare dimensions against available PCB space constraints to ensure proper fitment within the assembly layout.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of connectors produced by Fischer Elektronik. The series offers various configurations with different pin counts while maintaining consistent pitch and mounting characteristics. These headers are designed for reliable interconnection in electronic circuits, providing a standardized interface between boards or components.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers from the same series with identical pitch and row count, such as SL 11 190 36 Z or SL 11 190 33 Z, provided the pin count matches the design requirements. Verify dimensional compatibility and contact material specifications before substitution.
