SL 11 190 22 S

Headers, Male Pins Overview

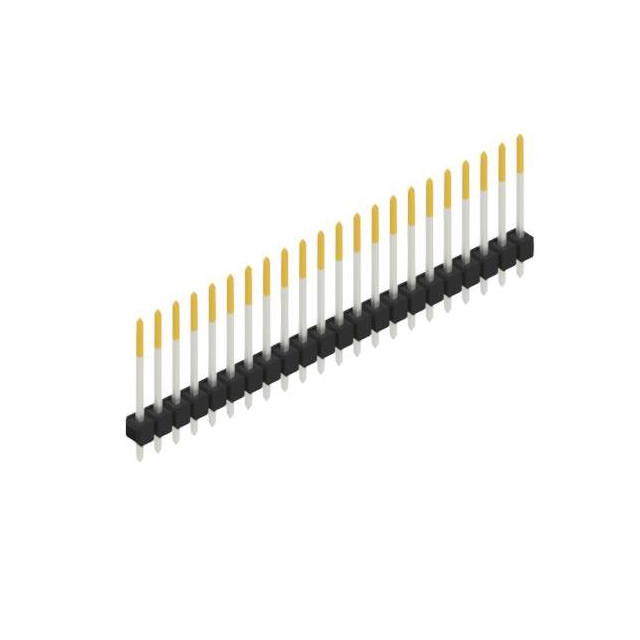

The SL 11 190 22 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 22 contacts with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes square-shaped pins made of copper-tin alloy, finished with tin plating to ensure reliable electrical connections. Insulated with polyamide (PA46), the unit supports an operating temperature range from -40°C to +163°C and meets UL 94 V-0 flammability standards. The total contact length is 19.00 mm, with a mating contact length of 13.21 mm and a column contact length of 3.00 mm.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or wire-to-board interconnections
• Through-hole soldering termination technique ensuring secure mechanical attachment
• Polyamide insulation material providing high specific insulation resistance and flame retardancy

Headers, Male Pins Applications

• General purpose PCB interconnection systems
• Industrial control panel wiring
• Consumer electronics assembly
• Test and measurement equipment prototyping

Headers, Male Pins Procurement Notes

Verify that the ordering suffix 'S' corresponds to the tin-plated variant as specified in official Fischer Elektronik documentation. Confirm that the part number matches the 22-position count and single-row layout. Ensure compatibility with standard 2.54 mm pitch mating connectors. Check datasheet specifications for thermal endurance during soldering processes to prevent insulation damage.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header is required for standard 2.54 mm spacing applications. Consider the tin-plated finish for general environmental conditions rather than high-corrosion environments requiring gold plating. Verify that the 19.00 mm overall height and 3.00 mm pin insertion depth fit within the available vertical clearance on the target assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of Fischer Elektronik pin headers. The series offers various contact counts and row configurations. The SL 11 190 22 S specifically denotes a 22-contact single-row version with tin plating. Other variants in the series may feature different contact counts, such as 24 or 36 positions, or alternative plating options like gold.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 22-position count, single-row male format, and through-hole mounting style. Verify that replacement parts offer equivalent thermal stability up to 163°C and compatible pin dimensions. Cross-reference with Fischer Elektronik's own updated part numbers if availability changes.
