SL 11 190 24 S

Headers, Male Pins Overview

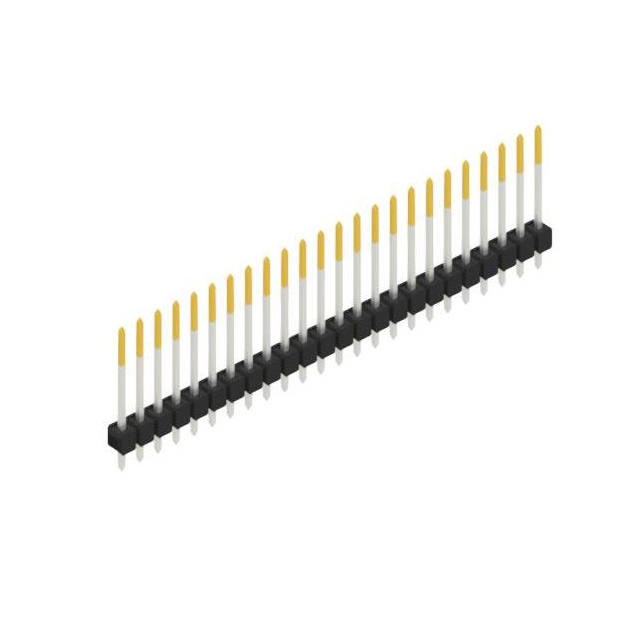

The SL 11 190 24 S is a single-row male header connector manufactured by Fischer Elektronik. It features 24 positions with a 0.100 inch (2.54 mm) pitch and utilizes through-hole mounting. The contacts are tin-plated copper alloy pins with a mating contact length of 0.520 inches (13.21 mm). The component operates within a temperature range of -40°C to +163°C and complies with UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board interconnection
• Tin-plated copper alloy contacts ensuring reliable conductivity
• Polyamide insulation material providing thermal stability

Headers, Male Pins Applications

• Industrial control systems
• General-purpose electronic assemblies
• Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official datasheets to confirm tin plating specifications, as other suffixes indicate different finishes like gold or nickel. Ensure the 24-position count matches the design requirements. Confirm RoHS compliance status if required by project regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part when a single-row, 2.54mm pitch male header is required for through-hole PCB assembly. Consider the operating temperature range and UL94 V-0 rating for environmental suitability. Compare contact lengths and insulation heights against mating connectors to ensure mechanical compatibility.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various position counts and row configurations. The SL 11 190 variant specifically denotes dimensions compatible with standard industrial spacing, while the 'S' suffix identifies the tin-plated contact finish.

Headers, Male Pins Replacement Considerations

Compatible substitutes include SL 11 190 24 G (gold plated) and SL 11 190 24 Ni (nickel plated). Verify that alternative suffixes meet the same electrical and mechanical requirements before substitution.
