SL 11 190 27 S

Headers, Male Pins Overview

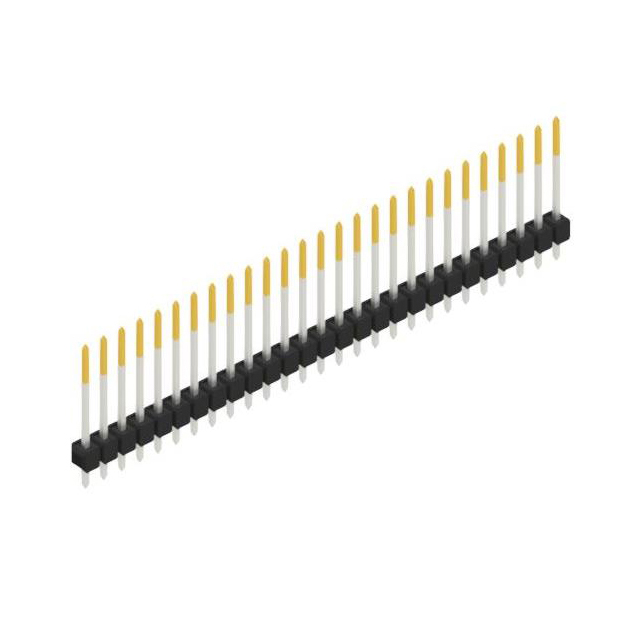

The SL 11 190 27 S is a single-row male pin header manufactured by Fischer Elektronik. It features 27 contacts with a 2.54 mm (0.100 inch) pitch and is designed for through-hole termination. The connector utilizes copper-tin contact material with a tin plating finish on both the post and mating surfaces. Insulation is provided by polyamide (PA46), also known as Nylon 4/6, which meets UL 94 V-0 flammability standards. The component operates within a temperature range of -40°C to +163°C and supports reflow soldering processes.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Polyamide insulation material ensuring high thermal stability
• Tin-plated copper-tin contacts for reliable conductivity
• UL 94 V-0 rated flammability classification

Headers, Male Pins Applications

• General-purpose board-to-board interconnections
• Wire-to-board connections in electronic assemblies
• Industrial control systems requiring robust headers
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm the exact contact plating thickness and material composition. Ensure that the required operating temperature range aligns with the specified -40°C to +163°C limit. Confirm that the through-hole footprint matches the technical drawing dimensions provided in the official documentation before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a standard 2.54 mm pitch is required for through-hole applications. Consider the PA46 insulation material for environments demanding high heat resistance and UL 94 V-0 compliance. Verify that the 27-contact length fits the available board space and that the tin finish is suitable for the intended mating connector interface.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of precision-engineered electronic connectors from Fischer Elektronik. The series offers various contact counts and configurations tailored for compact designs. Components in this line are characterized by their standardized spacing and durable insulation materials, supporting reliable performance in diverse industrial and commercial electronic applications.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik cross-reference list for verified substitute part numbers. Generic equivalents may not match the specific insulation material or flammability rating. Ensure any replacement maintains the same 2.54 mm pitch and through-hole termination style.
