SL 11 190 28 Z

Headers, Male Pins Overview

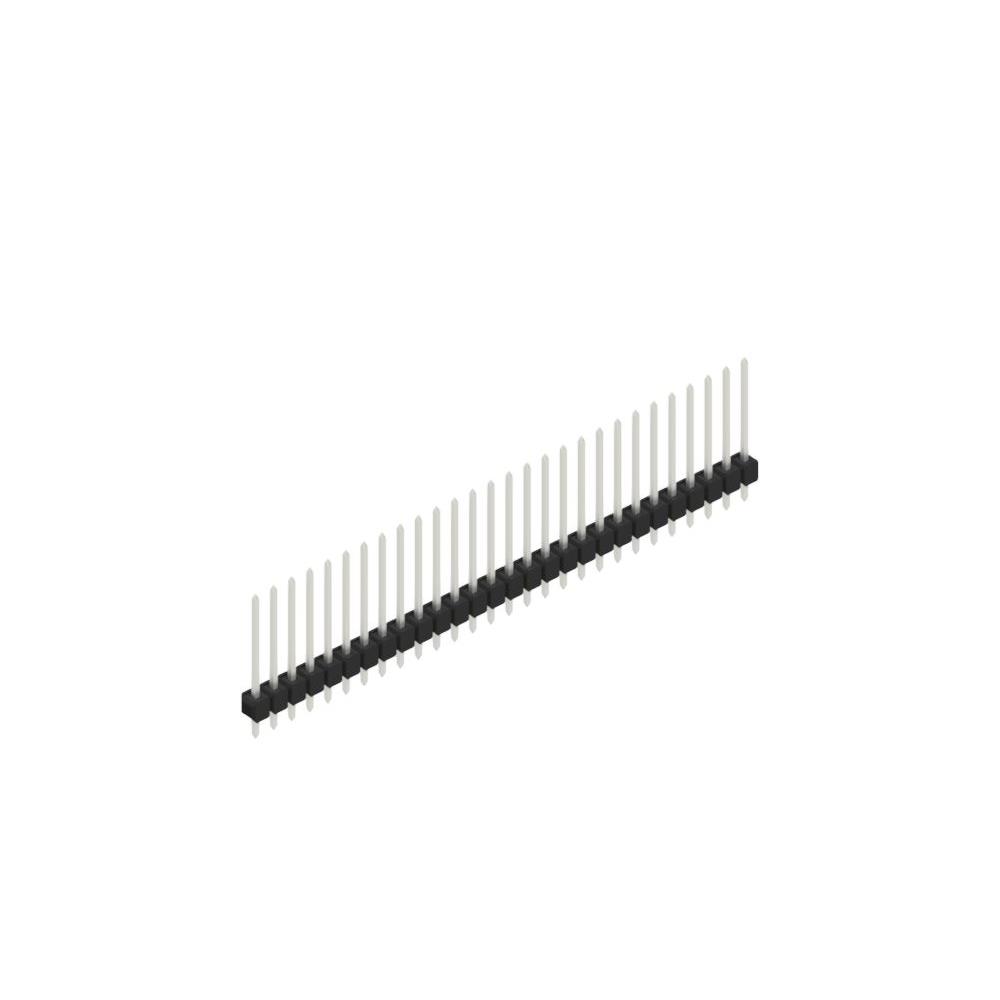

The SL 11 190 28 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 28 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes tin-plated copper-silver contacts and a black polyamide insulation material rated UL94 V-0. It supports an operating temperature range of -40°C to 163°C and has a current rating of 3A with a voltage rating specified in official documentation.

Headers, Male Pins Feature Summary

• Single-row configuration with 28 male pins for reliable electrical interconnection
• Through-hole mounting design ensuring secure PCB attachment
• Tin-plated contact surfaces providing corrosion resistance and conductivity
• Polyamide insulation housing with UL94 V-0 flammability rating

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control system signal routing
• Consumer electronics assembly requiring standard pitch headers

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 190 28 Z against manufacturer datasheets to confirm pin count and pitch accuracy. Ensure compatibility with mating connectors regarding contact length and insulation height. Check for any specific handling requirements related to the tin-plated contacts during storage and assembly processes.

Headers, Male Pins Selection Notes

Select this component when a 28-position single-row header with 2.54 mm spacing is required. Consider the 3A current rating and -40°C to 163°C temperature range for environmental suitability. Verify that the through-hole mounting style aligns with the PCB design constraints and that the tin plating meets the application's soldering and durability needs.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of precision-engineered male headers from Fischer Elektronik. The series offers various pin counts while maintaining consistent 0.100 inch pitch dimensions. These components are designed for compact applications requiring reliable connectivity within standard electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitute part numbers within the SL 11 190 series with different pin counts. Verify mechanical and electrical compatibility before substituting with generic equivalents, ensuring matching pitch, current ratings, and mounting styles.
