SL 11 190 29 Z

Headers, Male Pins Overview

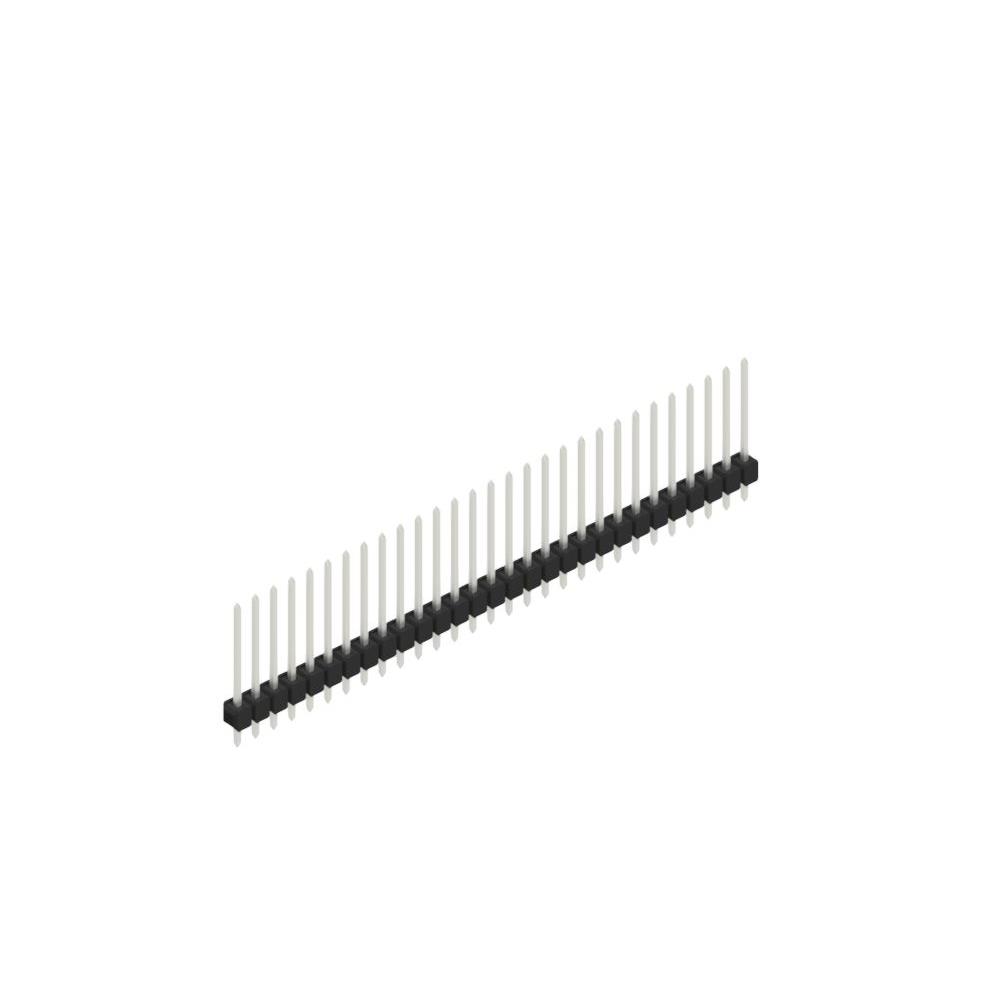

The SL 11 190 29 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 29 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The contacts are square-shaped pins made of copper-tin alloy, finished with tin plating to ensure reliable electrical connections. This component belongs to the SL 11 190 series and is currently in active production status.

Headers, Male Pins Feature Summary

• Single-row configuration optimized for compact board layouts
• Through-hole mounting style for secure PCB attachment
• Tin-plated copper-tin contacts for corrosion resistance

Headers, Male Pins Applications

• General electronic interconnects
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the exact pin count matches the required 29-position specification before ordering. Confirm that the through-hole mounting method aligns with your PCB fabrication capabilities. Ensure the 2.54 mm pitch is compatible with existing design footprints. Check for any specific packaging requirements if bulk quantities are needed for production runs.

Headers, Male Pins Selection Notes

Select this part when a single-row male header with 29 pins is required. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Consider the through-hole technology if surface-mount alternatives are not suitable for mechanical stress requirements. Verify insulation material compatibility with your assembly environment.

Headers, Male Pins Part Context

This component is part of the SL 11 190 series from Fischer Elektronik, which specializes in precision connectors. The series offers various pin counts while maintaining consistent pitch and form factor. It serves as a reliable interface solution for board-to-board or wire-to-board connections in various electronic applications requiring robust mechanical stability.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 190 36 Z and SL 11 190 33 Z, though these have different pin counts. Ensure any replacement maintains the 2.54 mm pitch and single-row configuration. Verify that contact materials and plating specifications remain identical to preserve electrical performance.
