SL 11 190 3 G

Headers, Male Pins Overview

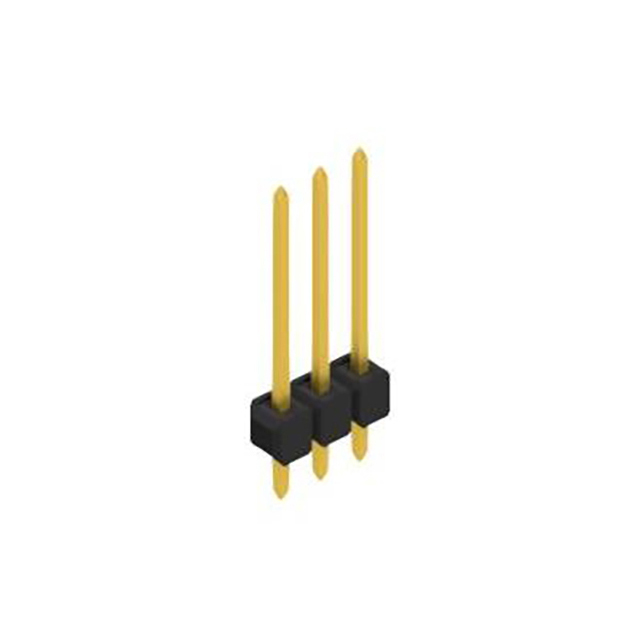

The SL 11 190 3 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with three contacts and a 2.54 mm pitch. The component utilizes through-hole mounting for secure PCB attachment. Contact surfaces are gold-plated to ensure reliable signal transmission. The housing material is specified as PA 4.6 GF, providing structural integrity. Rated voltage is 250 V AC with an insulation resistance of 2000 V. Operating temperature ranges from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Gold-plated contact surfaces for enhanced conductivity
• PA 4.6 GF insulating material for thermal stability
• Single-row straight pin configuration
• Through-hole mounting technology

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Prototype board assembly
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms gold plating rather than tin or silver variants within the SL 11 190 series. Confirm that the three-position count matches the design requirement, as this series offers multiple pin counts. Ensure the through-hole footprint aligns with the target PCB layout specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when gold plating is required for corrosion resistance or low contact impedance applications. The 2.54 mm pitch is standard for general electronics but verify clearance against adjacent components. Consider the PA 4.6 GF material if higher thermal endurance above standard nylon limits is necessary for reflow soldering processes.

Headers, Male Pins Part Context

This component belongs to the SL 11 190 series of precision-engineered male headers. The series is characterized by compact dimensions and reliable performance in various electronic assemblies. Fischer Elektronik designs these connectors for durability and consistent electrical performance across industrial and commercial environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, single-row format, and gold-plated contacts. Verify mechanical compatibility with existing PCB footprints. Alternative manufacturers may offer similar specifications but require validation of insulation material ratings and voltage withstand capabilities.
