SL 11 190 3 S

Headers, Male Pins Overview

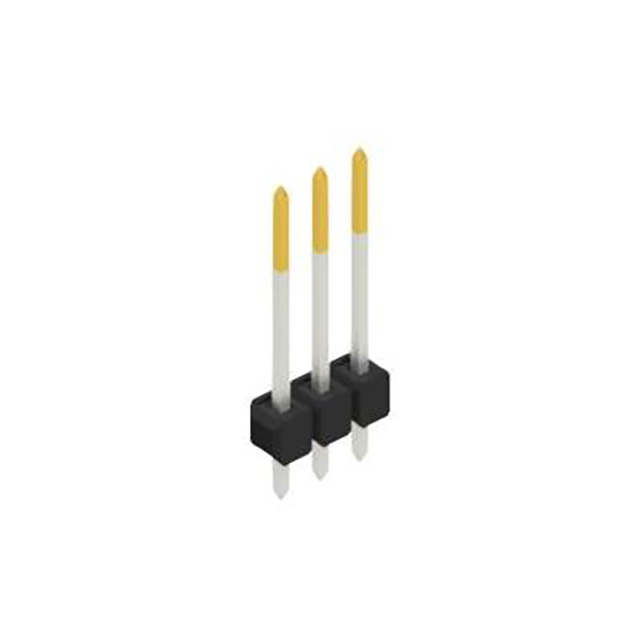

The SL 11 190 3 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and accommodates three positions. The component utilizes a through-hole termination method for PCB mounting. Electrical ratings include a current capacity of 3 A and voltage ratings of 250 V AC with an insulation resistance exceeding 10^7 Ω·m. The insulating material is PA 4.6 GF, rated UL 94 V-0. Operating temperature ranges from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for reliable electrical interconnection
• Through-hole soldering termination ensures secure mechanical attachment to printed circuit boards
• Constructed with PA 4.6 GF insulation material providing high thermal stability and flammability resistance

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring low-profile interconnects
• Prototyping circuits utilizing standard 2.54 mm spacing
• Industrial control modules operating within specified thermal limits

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm tin plating specifications and exact dimensional tolerances. Ensure compatibility with mating female connectors regarding contact length and alignment. Cross-reference the UL 94 V-0 rating with local safety regulations for the intended application environment.

Headers, Male Pins Selection Notes

Select this model when a compact, single-row header with a 2.54 mm pitch is required. Confirm that the 3-position count matches the circuit design. Validate that the 3 A current rating and 250 V AC voltage limit are sufficient for the load. Check that the operating temperature range covers the environmental conditions of the installation site.

Headers, Male Pins Part Context

This component belongs to the SL 11 190 series of precision-engineered headers. The series offers various position counts and plating options. The SL 11 190 3 S specifically denotes a three-position variant with standard tin finish. It is part of Fischer Elektronik's portfolio of robust PCB interconnect solutions.

Headers, Male Pins Replacement Considerations

Compatible substitutes must maintain the 2.54 mm pitch, single-row layout, and 3-position count. Verify that alternative models support through-hole mounting and match the 3 A current rating. Ensure the replacement uses compatible insulating materials with similar thermal and flammability properties.

Headers, Male Pins FAQ

What is the maximum operating temperature for the SL 11 190 3 S?

The component supports an operating temperature range from -40°C to +163°C.

Is the SL 11 190 3 S suitable for high-voltage applications?

It is rated for 250 V AC, which is suitable for standard low-voltage electronic circuits but not for high-voltage industrial power systems.
