SL 11 190 3 Z

Headers, Male Pins Overview

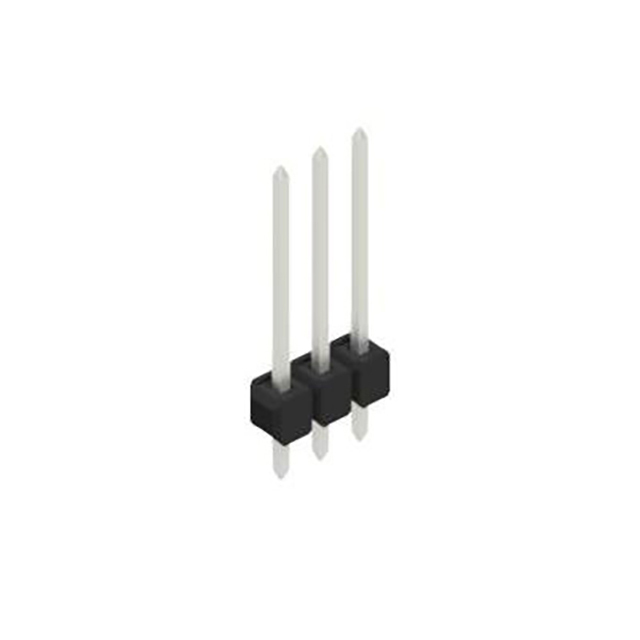

The SL 11 190 3 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains three contacts. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper-tin alloy with tin plating, providing a contact thickness of 157.5 µin (4.00 µm). The insulation material is polyamide (PA46), glass-filled nylon, rated UL 94 V-0. Operating temperature ranges from -40°C to +163°C. Rated current is 3 A at 250 V AC, with an insulation voltage of 2000 V.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for board-to-board or wire-to-board interconnection.
• Through-hole soldering termination ensures secure mechanical attachment to printed circuit boards.
• Glass-filled polyamide insulation provides high thermal stability and flame resistance.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring low-current signal transmission
• Prototyping boards and development kits utilizing standard 2.54 mm spacing
• Industrial control modules operating within specified thermal limits

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against manufacturer documentation to confirm exact plating specifications and material composition. Ensure that the required contact count matches the three-position variant, as the series offers multiple pin counts. Confirm compatibility with mating female headers regarding height and pitch tolerances before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a single-row, three-contact male header is required for through-hole applications. The 2.54 mm pitch aligns with standard breadboard and prototyping systems. Consider the 3 A current rating and 250 V AC insulation voltage for appropriate electrical isolation. The PA46 material selection supports environments requiring operation up to 163°C.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of Fischer Elektronik connectors. The series includes various pin counts and contact finishes, such as gold or tin options. The SL 11 designation typically indicates a single-row male header format. This specific model represents the lowest pin count variant in the series, offering compact connectivity solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik models within the SL 11 190 series with identical pitch and row configuration but different pin counts or finishes. Cross-manufacturer replacements must match the 2.54 mm pitch, through-hole termination style, and single-row male pin geometry to ensure physical compatibility.
