SL 11 190 30 G

Headers, Male Pins Overview

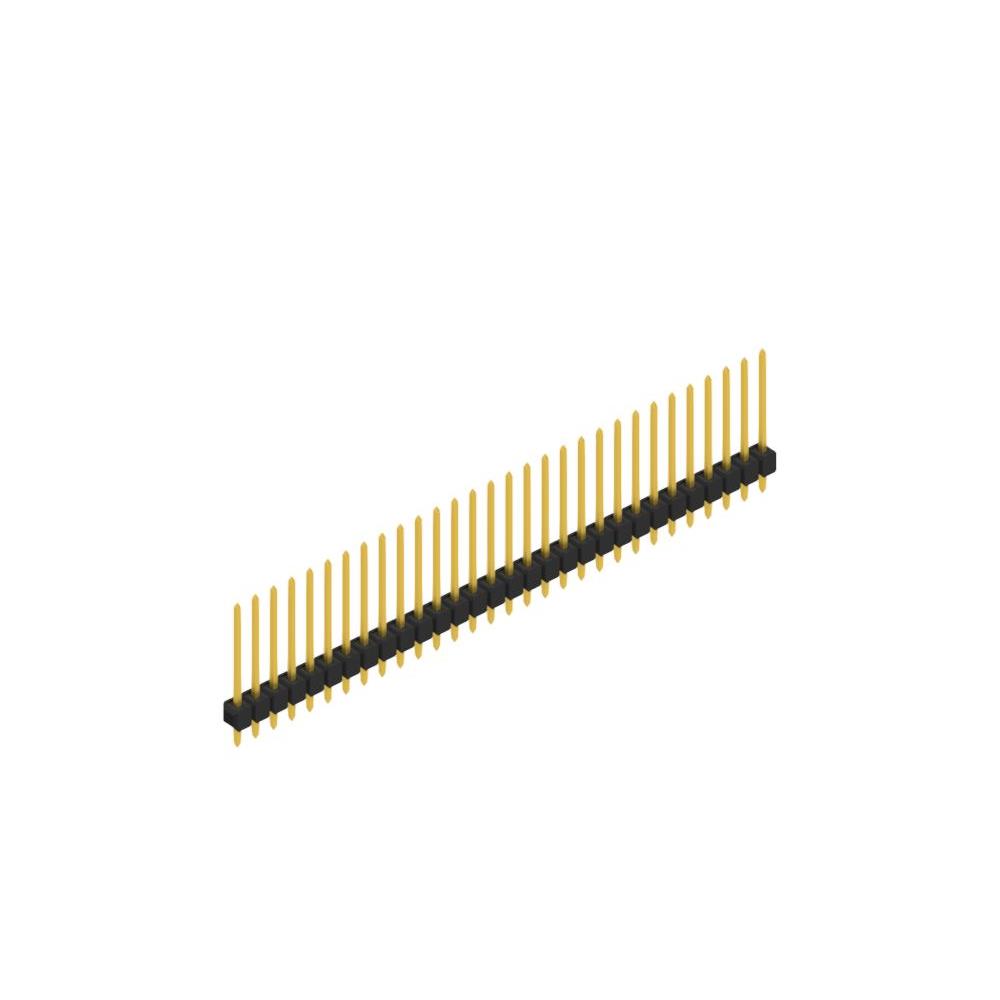

The SL 11 190 30 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) contact pitch and contains 30 positions. The connector utilizes through-hole mounting for secure PCB attachment. Contact surfaces are tin-plated to ensure reliable electrical conductivity. The assembly includes a polyamide insulation body with a height of 2.80 mm. Total contact length measures 19.00 mm, with a mating engagement length of 13.21 mm.

Headers, Male Pins Feature Summary

• Single-row configuration designed for standard board-to-board or wire-to-board interconnections.
• Through-hole termination method ensures robust mechanical stability on printed circuit boards.
• Tin-plated contact surfaces provide effective corrosion resistance and signal transmission.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring standardized 2.54 mm spacing
• Industrial control modules utilizing through-hole header connections
• Consumer electronics internal wiring harness interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against the manufacturer's current datasheet to confirm plating specifications and material composition. Ensure the required pin count matches exactly thirty positions. Confirm that the through-hole footprint aligns with the target PCB design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. The tin-plated contacts suit applications where gold plating is unnecessary. Verify that the 2.80 mm insulation height fits within the available vertical clearance of the enclosure or assembly structure.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various pin counts and row configurations. The SL 11 190 variant specifically denotes the dimensional profile associated with this housing style. Other parts in the series share similar mechanical interfaces but differ in contact quantity.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch and 30-pin count. Verify that alternative manufacturers match the 2.80 mm insulation height and through-hole terminal dimensions to ensure physical compatibility.
