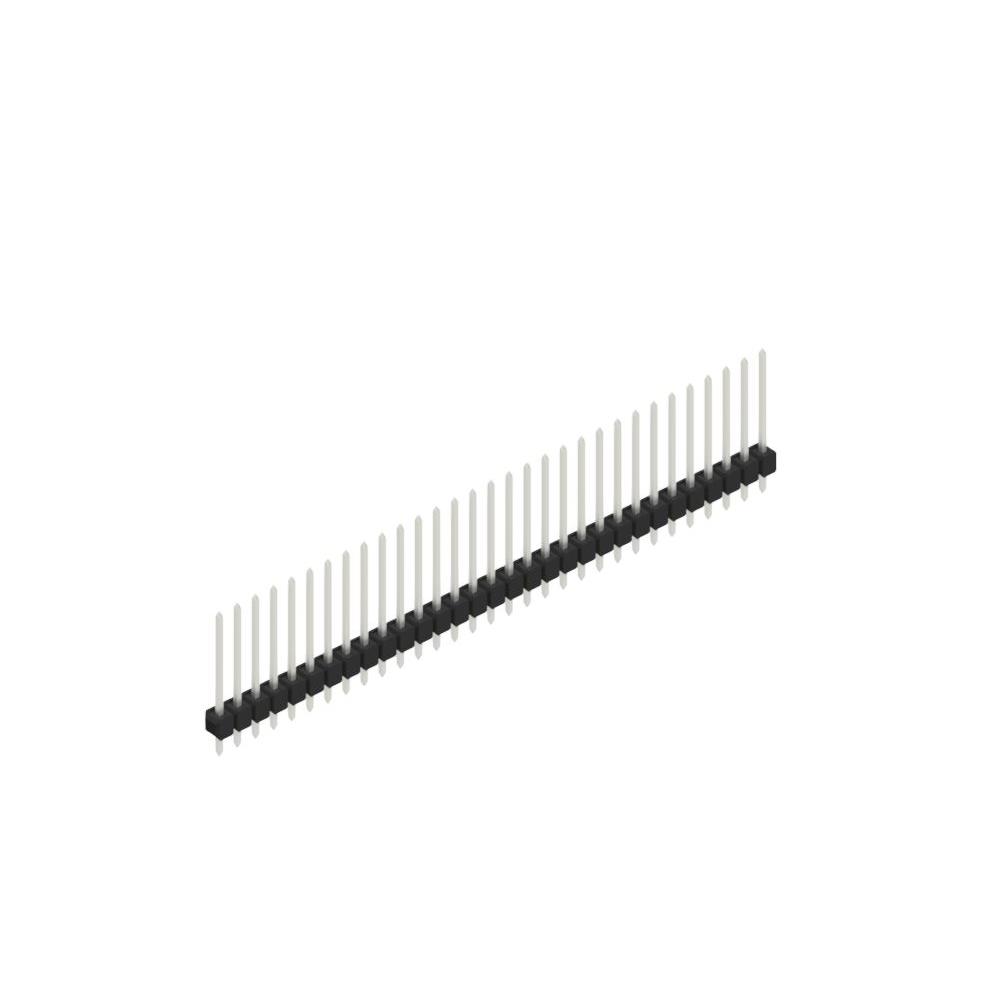

SL 11 190 31 Z is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for SL 11 190 31 Z
- Description：ONE ROW, 0.635 MM
- Series：SL 11 190
- Mfr：Fischer Elektronik
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：31
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.520" (13.21mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.748" (19.00mm)
- Insulation Height：0.110" (2.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：157.5µin (4.00µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Tin
- Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
- Features：-
- Operating Temperature：-40°C ~ 163°C
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：250VAC
Headers, Male Pins datasheet and documents for SL 11 190 31 Z
Headers, Male Pins Overview
The SL 11 190 31 Z is a single-row male header connector manufactured by Fischer Elektronik. It features 31 positions with a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the contacts are made of copper-tin alloy with a tin surface finish. The connector utilizes a PA46 (nylon) insulator and has a total contact length of 0.748 inches (19.00 mm).
Headers, Male Pins Feature Summary
- Single-row male pin configuration for standard PCB interconnection.
- Through-hole mounting style ensures secure mechanical attachment.
- Tin-plated copper-tin contacts provide reliable conductivity.
Headers, Male Pins Applications
- General electronic circuit board interconnections.
- Signal routing in industrial control systems.
- Prototyping and development boards.
Headers, Male Pins Procurement Notes
Verify the specific part number SL 11 190 31 Z against official Fischer Elektronik documentation to confirm the 31-position count and tin finish. Ensure compatibility with existing PCB footprint dimensions and mating connector specifications before procurement.
Headers, Male Pins Selection Notes
Select this component when a single-row, 31-pin male header with 2.54 mm pitch is required. Consider the through-hole mounting requirement and tin contact finish for soldering compatibility. Verify that the operating temperature range and current ratings meet the application's electrical demands.
Headers, Male Pins Part Context
This part belongs to the SL 11 series of rectangular connectors from Fischer Elektronik. The series offers various pin counts and configurations for different interconnection needs. The SL 11 190 31 Z specifically provides a 31-contact solution within this standardized family.
Headers, Male Pins Replacement Considerations
Consult Fischer Elektronik catalogs for direct equivalents with identical pin counts and pitch. Cross-reference with other manufacturers offering 31-position, 2.54 mm pitch male headers if supply constraints exist, ensuring mechanical and electrical compatibility.
