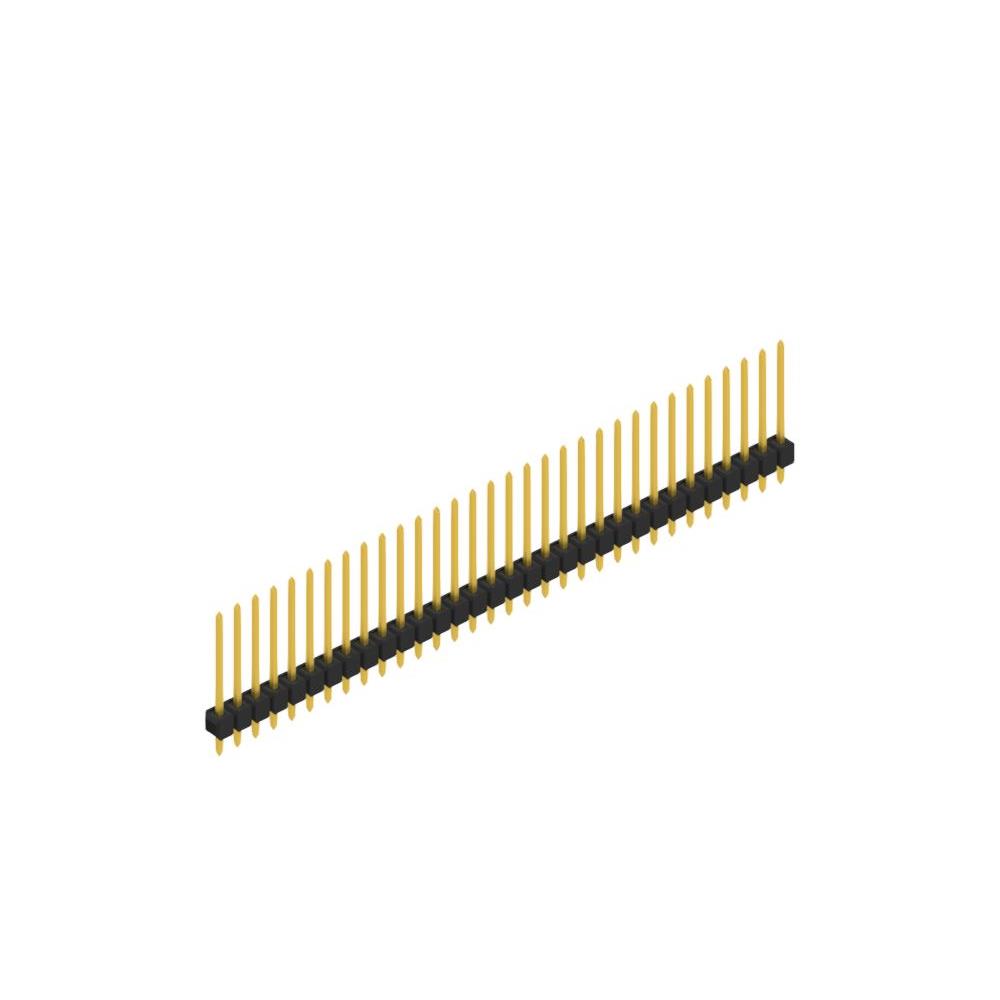

SL 11 190 32 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for SL 11 190 32 G
- Description：ONE ROW, 0.635 MM
- Series：SL 11 190
- Mfr：Fischer Elektronik
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：32
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.520" (13.21mm)
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：0.748" (19.00mm)
- Insulation Height：0.110" (2.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：7.87µin (0.200µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Tin
- Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
- Features：-
- Operating Temperature：-40°C ~ 163°C
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：250VAC
Headers, Male Pins datasheet and documents for SL 11 190 32 G
Headers, Male Pins Overview
The SL 11 190 32 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) contact pitch and contains 32 positions. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper tin, with gold plating on the post section to ensure reliable conductivity. The insulation material is polyamide (PA46), glass-filled nylon, providing structural stability.
Headers, Male Pins Feature Summary
- Single-row unshrouded male pin configuration
- Gold-plated contact posts for enhanced durability
- Through-hole soldering termination method
- Glass-filled polyamide insulation housing
Headers, Male Pins Applications
- Board-to-board interconnections
- Wire-to-board connections
- General-purpose electronic circuit assembly
Headers, Male Pins Procurement Notes
Verify the specific ordering suffix 'G' corresponds to the required gold contact finish when sourcing. Confirm that the 32-position count matches the design requirements. Ensure the through-hole mounting style aligns with the target printed circuit board layout. Check compatibility with mating female contacts regarding shrouding and pitch dimensions.
Headers, Male Pins Selection Notes
Select this component for applications requiring a standard 2.54 mm pitch male header. The gold-plated posts offer superior corrosion resistance compared to tin-only variants. The glass-filled PA46 insulation supports higher mechanical strength. Consider the unshrouded design if space constraints or specific mating profiles are required.
Headers, Male Pins Part Context
This part belongs to the SL 11 190 series of Fischer Elektronik headers. The series offers various contact counts and pitch options. The 'G' suffix typically denotes specific contact finishing. These connectors are designed for general electronic use within defined temperature ranges.
Headers, Male Pins Replacement Considerations
SL 11 190 36 Z
Headers, Male Pins FAQ
What is the contact material used in this header?
The contacts are made from copper tin.
Is the connector shrouded?
No, the SL 11 190 32 G is an unshrouded header.
