SL 11 190 32 S

Headers, Male Pins Overview

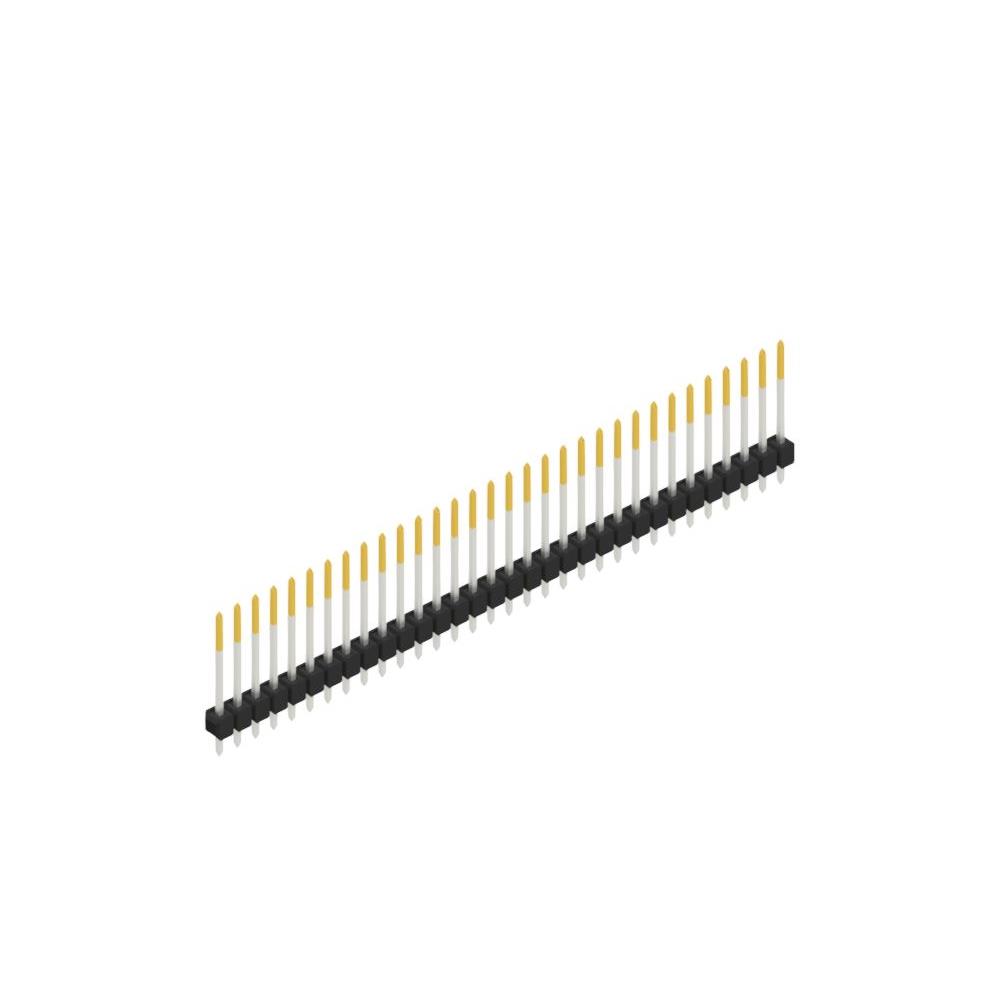

The SL 11 190 32 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 32 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable electrical performance. The insulating body is made of polyamide (PA46), providing structural integrity and thermal stability.

Headers, Male Pins Feature Summary

• Gold-plated contact surfaces for enhanced conductivity and corrosion resistance
• Polyamide insulation material ensuring high thermal stability
• Single-row straight pin configuration for standard PCB integration

Headers, Male Pins Applications

• General electronic equipment interconnection
• Industrial control system signal routing
• Consumer electronics board-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm gold plating specifications. Ensure the required contact count matches the 32-position variant. Cross-reference the datasheet for precise mechanical dimensions and soldering profile requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header with gold contacts is required. The 2.54 mm pitch is standard for general-purpose applications. Consider the PA46 insulation material for environments requiring moderate thermal resistance. Verify that the 32-pin configuration aligns with the target circuit design constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various pin counts and contact finishes. The SL 11 190 32 S specifically denotes a 32-position variant within this standardized lineup, designed for reliable signal transmission in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch, 32 positions, and gold-plated contacts. Verify mechanical compatibility and insulation material ratings before substituting with components from other manufacturers.
