SL 11 190 32 Z

Headers, Male Pins Overview

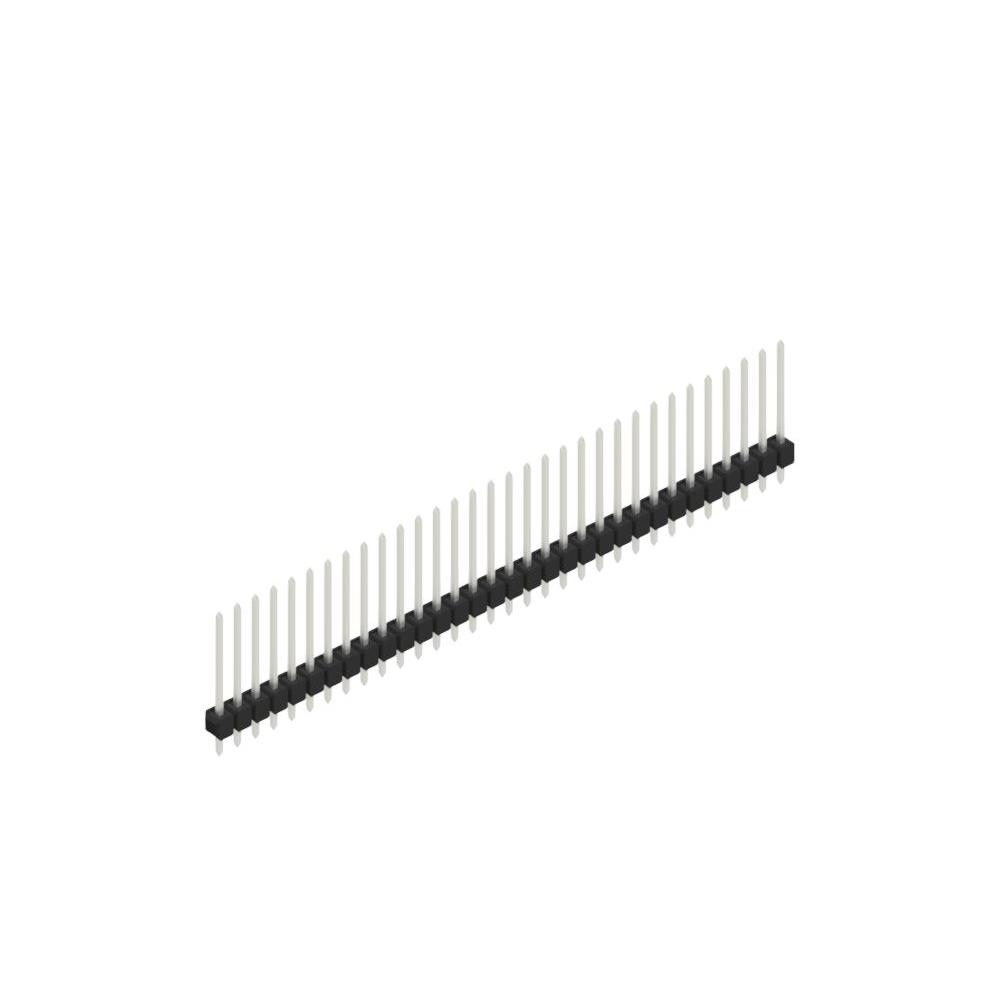

The SL 11 190 32 Z is a single-row male header connector manufactured by Fischer Elektronik. It features 32 positions with a 0.635 mm contact pitch and a 0.100 inch (2.54 mm) mating pitch. Designed for through-hole mounting, the connector utilizes square-shaped tin-plated copper-silver contacts. The overall contact length measures 0.748 inches (19.00 mm), while the insulation height is 0.110 inches (2.80 mm). The component is currently active in production.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Square contact shape designed for secure mechanical retention
• Through-hole termination method for reliable PCB integration

Headers, Male Pins Applications

• General purpose electronic assemblies
• Industrial control modules
• Consumer electronics interconnects

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the ordering part number matches the required 32-position count and single-row layout. Confirm that the through-hole package style aligns with the target PCB fabrication capabilities and soldering profile requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required. The 32-position count fits applications needing moderate density without occupying excessive board width. Verify that the 0.110 inch insulation height accommodates the available vertical clearance on the assembly. Ensure the tin finish meets the corrosion resistance needs of the operating environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of Fischer Elektronik headers. The series offers various position counts and row configurations. The SL 11 190 designation indicates a specific family of connectors characterized by the 0.635 mm pitch and robust construction suitable for repeated mating cycles in standard industrial environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik parts within the SL 11 190 series with different pin counts, such as SL 11 190 36 Z or SL 11 190 33 Z, provided the position count difference is acceptable for the design.
