SL 11 190 33 G

Headers, Male Pins Overview

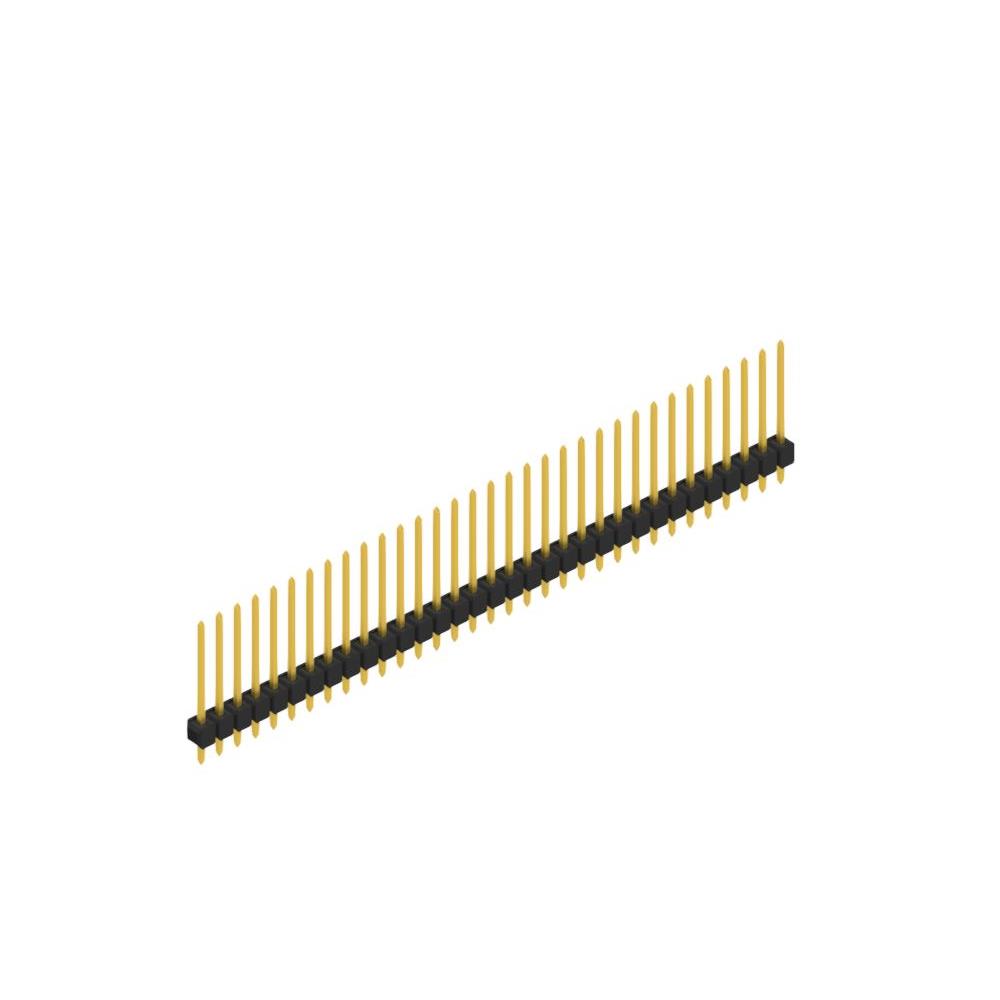

The SL 11 190 33 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features 33 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole PCB mounting. The contacts are made of copper-tin alloy with gold plating on the post section and tin plating on the mating interface. The insulation material is glass-filled polyamide (PA46/nylon 4/6), supporting an operating temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Gold-plated contact posts ensure reliable conductivity and corrosion resistance
• Glass-filled polyamide insulation provides thermal stability and mechanical strength
• Through-hole termination method ensures secure PCB attachment

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system signal routing
• Consumer electronics internal circuit connections

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'G' corresponds to the gold-plated post variant as documented in official Fischer Elektronik datasheets. Confirm that the glass-filled PA46 insulation meets the required thermal class for the intended application environment. Ensure compatibility with standard 2.54 mm pitch mating connectors to maintain proper electrical engagement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold-plated contacts is required for high-reliability applications. The glass-filled nylon insulation offers superior heat resistance compared to standard materials. Consider the 33-position count and through-hole mounting style against available space constraints on the target printed circuit board layout.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of rectangular connectors from Fischer Elektronik. The series typically includes various position counts and plating options, such as tin or nickel-gold variants. The SL 11 190 33 G specifically denotes the 33-position version with gold post plating, distinguishing it from tin-plated counterparts like the SL 11 190 33 Z.

Headers, Male Pins Replacement Considerations

Direct substitutes include SL 11 190 33 Z (tin-plated posts) if gold plating is not critical. Other Fischer Elektronik headers with identical 2.54 mm pitch and 33 positions may be compatible if contact geometry matches.
