SL 11 190 33 S

Headers, Male Pins Overview

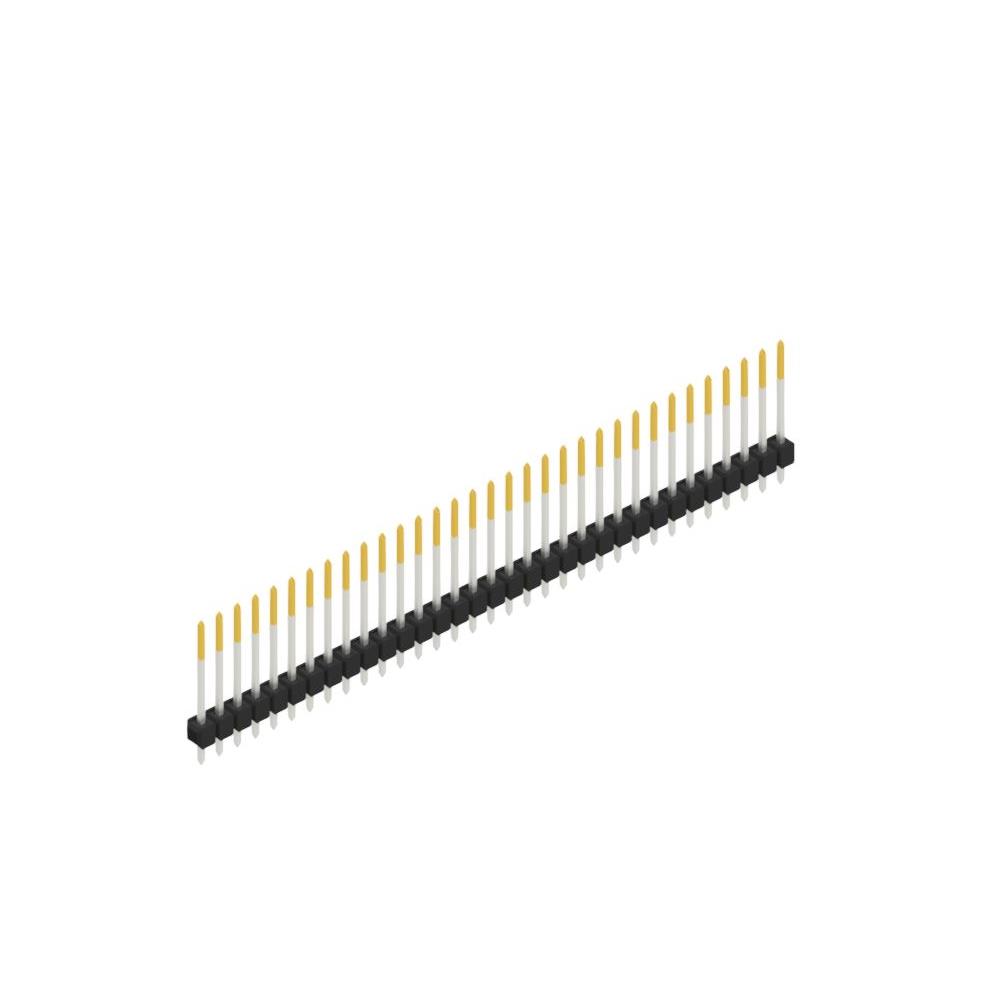

The SL 11 190 33 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 36 positions with a 2.54 mm (0.100 inch) pitch. The contacts are made of copper-tin alloy with a tin plating finish. The insulation material is polyamide (PA46), specifically nylon 4/6 glass-filled, rated UL 94 V-0 for flammability. The operating temperature range extends from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row through-hole male pin configuration designed for PCB mounting.
• Constructed with glass-filled polyamide insulation for structural stability and flame resistance.
• Tin-plated copper-tin contacts ensure reliable electrical connectivity.
• Rated for high-temperature soldering processes up to 260°C for 10 seconds.

Headers, Male Pins Applications

• General industrial electronic assemblies
• Automotive circuit interconnections
• Telecommunications equipment headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the datasheet to confirm contact plating and dimensional tolerances. Ensure the required current rating aligns with the application's thermal profile. Confirm that the 2.54 mm pitch matches the target PCB footprint. Check RoHS compliance status if restricted substances are mandated by the end product specifications.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-position male header is required for board-to-board or cable connections. The PA46 insulation offers superior heat resistance compared to standard nylons. The tin finish provides cost-effective conductivity suitable for non-corrosive environments. Consider the 163°C max operating temperature for high-heat proximity applications.

Headers, Male Pins Part Context

This part belongs to the SL 11 190 series of Fischer Elektronik connectors. The series defines the mechanical form factor and pitch, while the numeric suffix indicates the contact count and the letter suffix denotes specific finishing or variant details. This model represents a standard industry pitch solution for dense interconnect needs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 36-position, 2.54mm pitch male headers from manufacturers such as Molex or TE Connectivity, provided the insulation height and contact length match the SL 11 190 33 S specifications exactly.

Headers, Male Pins FAQ

What is the maximum reflow soldering temperature for this connector?

The connector is rated for soldering temperatures up to 260°C for a duration of 10 seconds.

Is the insulation material halogen-free?

The datasheet specifies Polyamide (PA46) Nylon 4/6 glass-filled but does not explicitly state halogen-free certification in the provided text.
