SL 11 190 34 G

Headers, Male Pins Overview

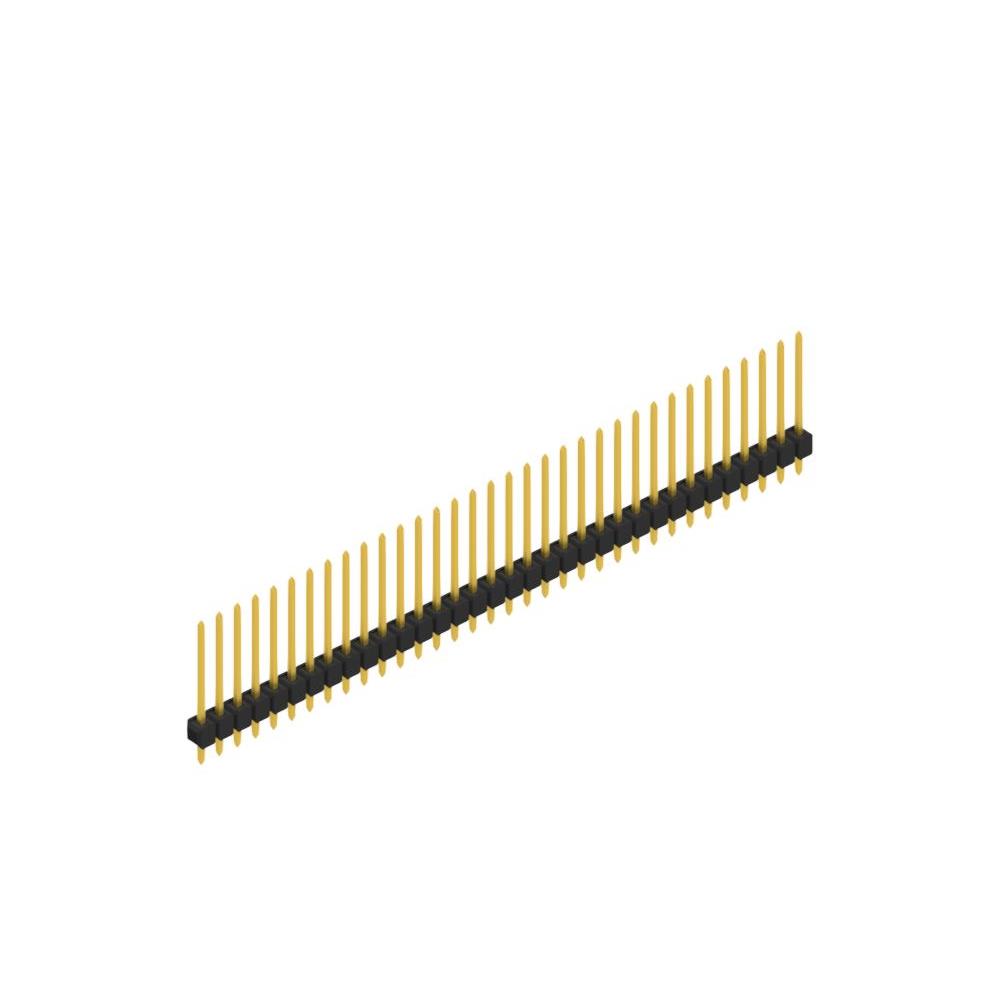

The SL 11 190 34 G is a single-row male header connector manufactured by Fischer Elektronik. It features 34 positions with a 2.54 mm (0.100 inch) pitch and 0.635 mm contact cross-section. The contacts are tin-plated copper alloy, offering a nominal current of 3 A and voltage rating of 250 V AC. Insulation material is PA 4.6 GF. Operating temperature range is -40°C to +163°C. Contact length for mating is 13.21 mm, post length 3.00 mm, total length 19.00 mm. Insulation height is 2.80 mm. Square pin shape ensures secure alignment.

Headers, Male Pins Feature Summary

• Single-row male header design for through-hole PCB mounting
• Tin-plated copper alloy contacts for reliable conductivity
• PA 4.6 GF insulation body for thermal stability
• Square pin configuration for precise alignment

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify exact part number including suffix 'G' for tin plating. Confirm 34-position count matches design requirements. Check datasheet for updated environmental compliance status. Ensure supplier provides original Fischer Elektronik documentation. Validate packaging type as bulk for handling compatibility.

Headers, Male Pins Selection Notes

Choose this model when single-row 2.54 mm pitch headers are required. Suitable for applications needing 3 A current capacity. PA 4.6 insulation supports high-temperature soldering processes. Tin plating offers cost-effective solution for non-corrosive environments. Verify mating connector compatibility with 0.635 mm square pins.

Headers, Male Pins Part Context

Part of Fischer Elektronik's SL 11 series precision headers. Series offers 1-36 positions with consistent 2.54 mm grid spacing. Designed for compact board-to-board connections. Square pin geometry enhances mechanical stability during mating cycles. Industry-standard dimensions ensure broad compatibility with existing connector ecosystems.

Headers, Male Pins Replacement Considerations

SL 11 190 34 S serves as alternative with gold plating instead of tin. Both share identical mechanical specifications and positioning. Gold variant offers enhanced corrosion resistance for harsh environments. Select based on environmental exposure requirements and budget constraints.
