SL 11 190 34 Z

Headers, Male Pins Overview

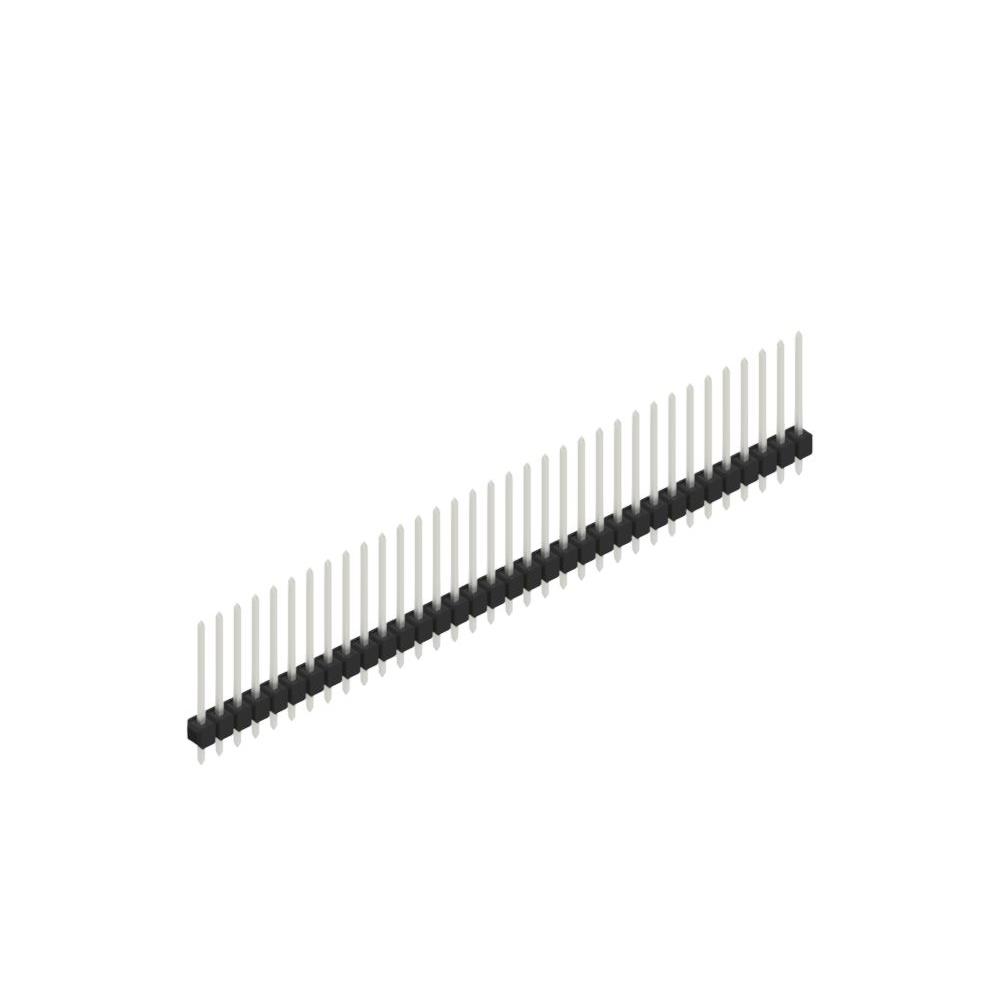

The SL 11 190 34 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 34-position configuration with a 0.100-inch (2.54 mm) pitch spacing. The connector utilizes through-hole termination for PCB mounting. Contacts are made from copper-tin alloy with a tin plating thickness of 157.5 µin (4.00 µm). The mating contact length measures 0.520 inches (13.21 mm), while the post contact length is 0.118 inches (3.00 mm). The total contact length is 0.748 inches (19.00 mm). Insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin header design for board-to-board or wire-to-board connections.
• Through-hole mounting technology ensures secure PCB attachment.
• Tin-plated copper-tin contacts provide reliable conductivity and corrosion resistance.

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 190 34 Z against manufacturer datasheets to confirm pin count and pitch specifications. Ensure compatibility with mating connectors regarding contact dimensions and insulation height. Check for authorized distributor status to guarantee component authenticity and traceability. Confirm packaging details such as bulk quantity upon order placement.

Headers, Male Pins Selection Notes

Select this component when a 34-position, single-row male header with 2.54 mm pitch is required. Consider the through-hole mounting style and PA46 insulation material for environmental stability. Evaluate the tin-plated contact finish for suitable solderability and wear resistance in the intended application environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 190 series of precision-engineered electronic connectors from Fischer Elektronik. The series offers various position counts while maintaining consistent 0.635 mm pitch characteristics within specific sub-series variations. This specific model represents a standard 34-position variant designed for reliable signal and power transmission in compact assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers within the SL 11 190 series with identical 34-position configurations and 2.54 mm pitch. Verify mechanical dimensions and contact material specifications before cross-referencing with generic industry equivalents to ensure functional compatibility.
