SL 11 214 22 S

Headers, Male Pins Overview

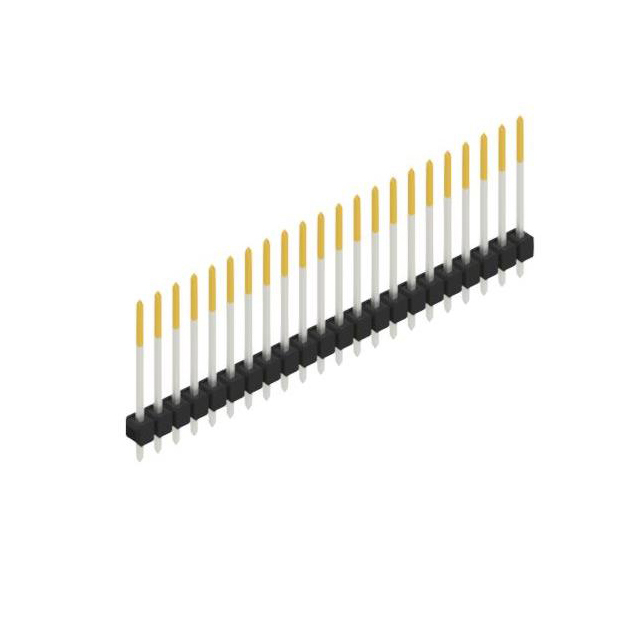

The SL 11 214 22 S is a single-row male pin header manufactured by Fischer Elektronik. It features 22 positions with a 0.100 inch (2.54 mm) contact pitch. Designed for through-hole mounting, the connector utilizes gold-plated contacts to ensure reliable signal transmission. The unit is classified as a general-purpose board connector suitable for standard PCB assembly processes.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward board-to-board or wire-to-board interconnection
• Gold-plated contact surfaces provide corrosion resistance and stable electrical performance
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards

Headers, Male Pins Applications

• General-purpose electronic equipment interconnections
• Industrial control system board assemblies
• Consumer electronics internal wiring connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating and material specifications. Ensure the selected variant matches the required insertion depth and thermal resistance ratings for your soldering process. Cross-reference the official part number with distributor catalogs to confirm availability and exact physical dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Choose this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Confirm that the 22-position count aligns with the circuit design requirements. Evaluate the gold plating option if long-term reliability in corrosive environments is necessary compared to tin-plated alternatives within the same series.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers. The series offers various row counts and position options. The SL 11 214 22 S specifically denotes a 22-position variant within this standardized line of rectangular connectors designed for robust industrial and commercial electronic applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 2.54 mm pitch and 22 positions. Verify that alternative parts match the through-hole mounting style and single-row configuration to ensure mechanical compatibility with existing PCB layouts.
