SL 11 240 28 G

Headers, Male Pins Overview

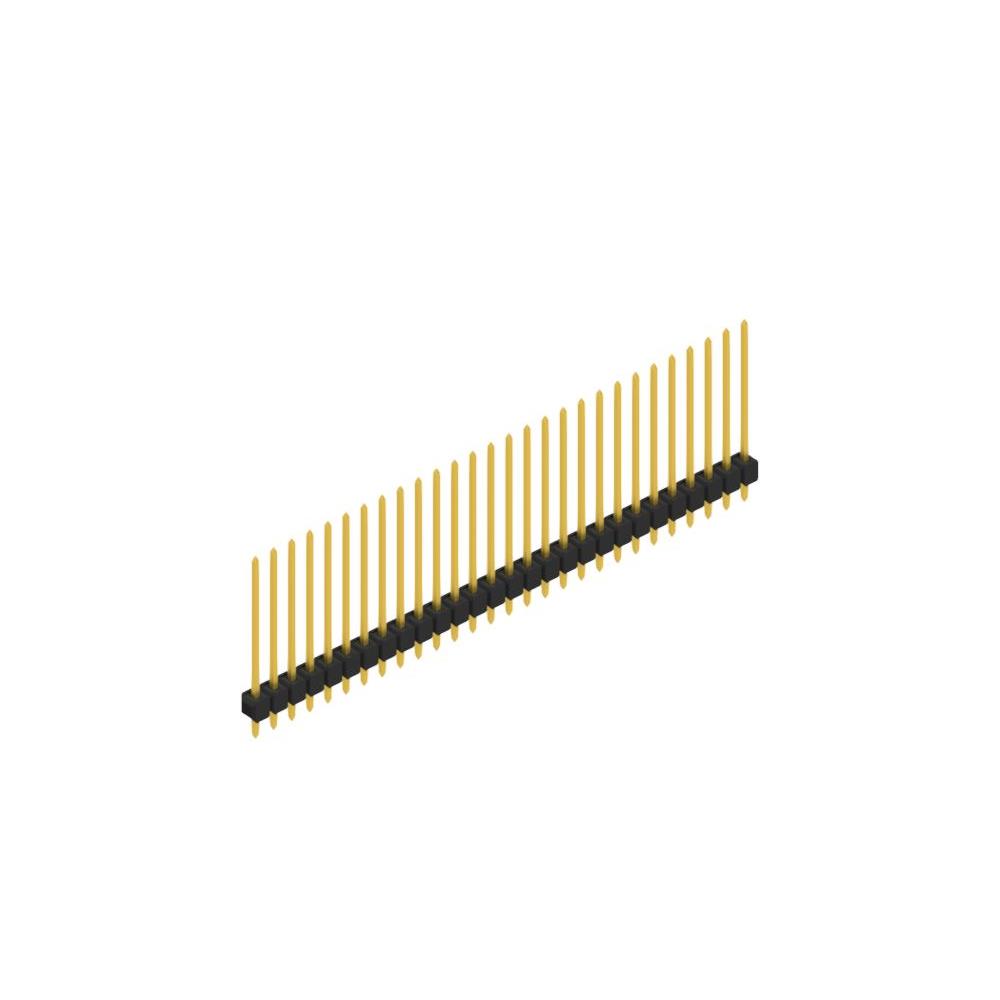

The SL 11 240 28 G is a male pin header connector from the Fischer Elektronik SL 11 series. It features a single row of 28 contacts with a 2.54 mm (0.100 inch) pitch. The contacts are constructed from CuSn alloy and feature selective gold plating to ensure reliable electrical performance. Designed for through-hole mounting, it supports a current rating of 3 A and withstands voltages up to 250 V AC, with an insulation resistance exceeding 107 Ω·m.

Headers, Male Pins Feature Summary

• Selective gold-plated contacts on CuSn alloy for enhanced conductivity
• Single-row configuration with 2.54 mm spacing
• Through-hole soldering termination method
• Insulation material rated UL 94 V-0

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General-purpose PCB headers

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against project requirements. Confirm that the selective gold plating meets corrosion resistance needs. Ensure the through-hole footprint matches the target PCB design. Check voltage and current ratings for operational safety margins.

Headers, Male Pins Selection Notes

Choose this component for applications requiring robust male pin headers with gold-plated contacts. The 2.54 mm pitch ensures compatibility with standard PCB layouts. Consider the 3 A current rating and 250 V AC voltage limit when designing circuits. Verify mechanical stability requirements for the through-hole installation.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of male headers. The series offers various contact counts and configurations. The SL 11 240 variant specifically denotes a 28-position single-row connector. Other variants in the series may differ in contact count or plating type.

Headers, Male Pins Replacement Considerations

Compatible substitutes include SL 11 240 28 S and SL 11 240 28 G from Fischer Elektronik. These parts share identical mechanical dimensions and contact specifications. Verify plating differences if environmental conditions require specific corrosion resistance.
