SL 11 SMD 062 68 S B SM

Headers, Male Pins Overview

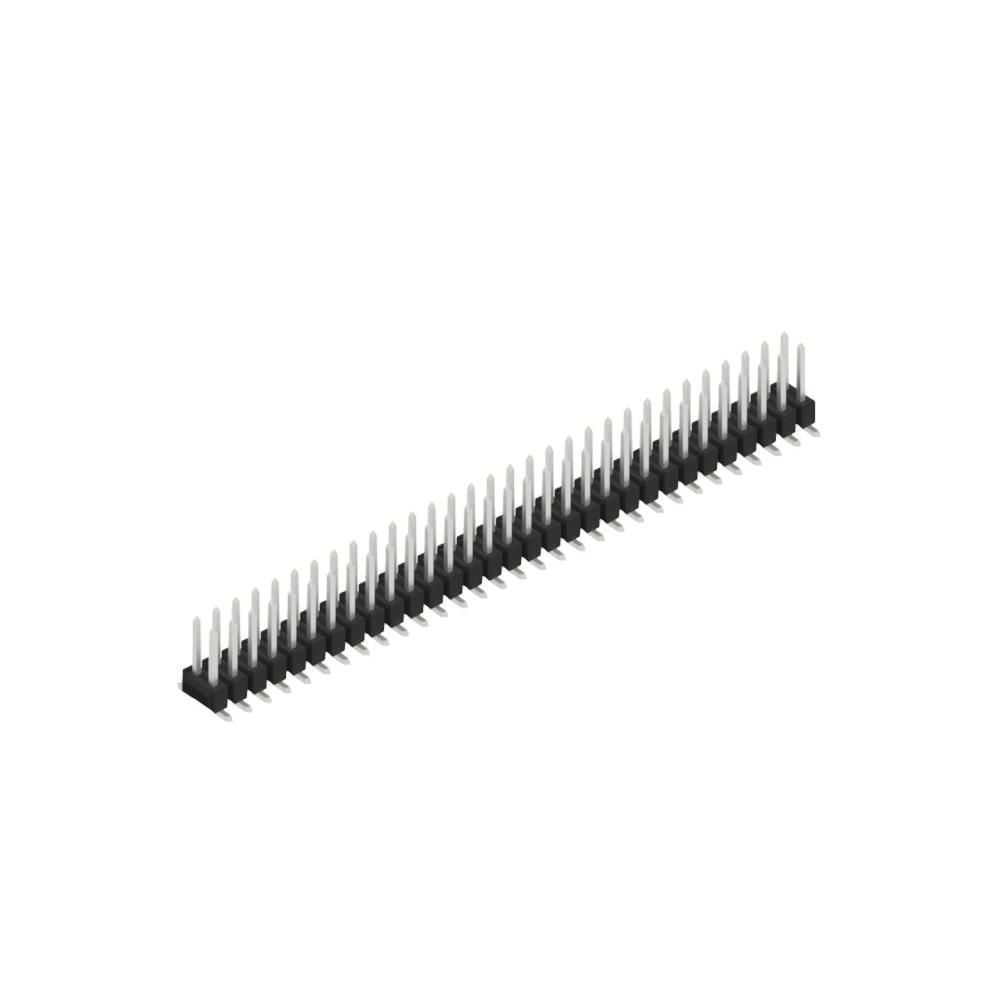

The SL 11 SMD 062 68 S B SM is a surface-mount header connector from Fischer Elektronik. It features 68 positions with a 0.100 inch (2.54 mm) pitch. The component is designed for male pin applications in PCB assembly. It utilizes a black insulating body and supports nominal currents of 3 A at 250 V AC. The unit meets UL 94 V-0 flammability standards and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Surface-mount technology design for automated PCB assembly
• High-density 68-position configuration with standard 2.54 mm spacing
• Robust PA 4.6 GF insulating body material
• Compliance with UL 94 V-0 flammability classification

Headers, Male Pins Applications

• Industrial control system interconnects
• Consumer electronics board-to-board connections
• Telecommunications equipment signal routing
• Automotive electronic module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Fischer Elektronik documentation to confirm contact count, plating type, and reel packaging details. Ensure compatibility with reflow soldering profiles specified in the datasheet. Cross-reference part numbers to avoid confusion with similar series variants that may differ in terminal geometry or insulation material specifications.

Headers, Male Pins Selection Notes

Select this component when high-density surface-mount headers are required for reliable signal transmission. The 2.54 mm pitch ensures compatibility with standard through-hole mating connectors. Consider the thermal stability of the PA 4.6 GF material for environments requiring resistance to heat during soldering processes. Confirm mechanical retention requirements for the specific PCB layout constraints.

Headers, Male Pins Part Context

This model belongs to the SL 11 SMD series of male headers manufactured by Fischer Elektronik. The series offers various contact counts ranging from 6 to 104 positions. These components are engineered for precision surface-mount applications, providing stable electrical connections in compact electronic assemblies. The series maintains consistent dimensional tolerances across different configurations.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik substitution guides for direct equivalents. Verify pinout compatibility and mechanical footprint dimensions before replacing. Generic substitutes may lack the specific thermal ratings or UL certification of the original component.
