SL 11 SMD 078 28 Z SM

Headers, Male Pins Overview

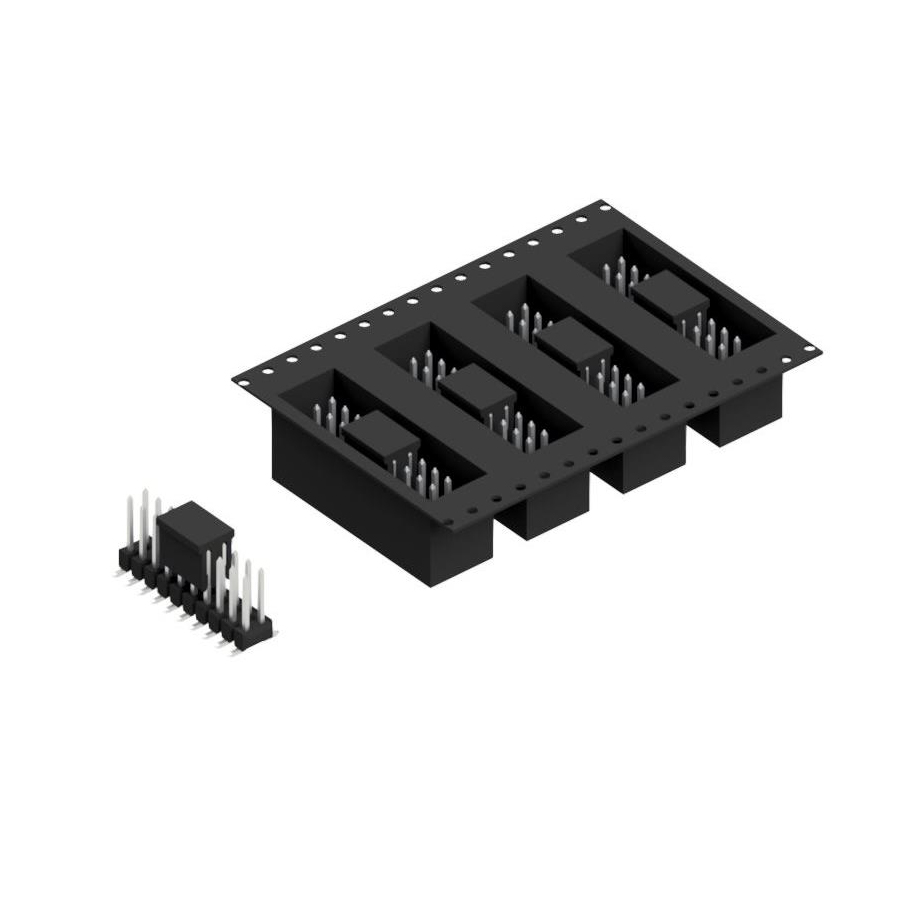

The SL 11 SMD 078 28 Z SM is a surface mount connector header manufactured by Fischer Elektronik. It features a dual-row configuration with 28 total contacts arranged in a 2x14 layout. The component utilizes a 2.54 mm (0.100 inch) pin spacing to ensure standard board-to-board or wire-to-board connectivity. Designed for surface mount technology, the unit offers straight pin orientation for direct PCB integration. The construction supports reliable electrical connections within electronic assemblies requiring compact, high-density interface solutions.

Headers, Male Pins Feature Summary

• Surface mount design for automated PCB assembly
• Dual-row 2x14 contact configuration
• Standard 2.54 mm pin spacing
• Straight pin orientation

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit interfaces

Headers, Male Pins Procurement Notes

Verify the exact part number including suffixes against official Fischer Elektronik documentation to confirm specific plating and packaging details. Ensure compatibility with surface mount assembly processes. Cross-reference technical drawings for mechanical fitment requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a dual-row surface mount header with 28 positions is required. The 2.54 mm pitch aligns with standard industry connectors. Consider the straight profile for vertical mounting constraints. Confirm that the surface mount footprint matches the target PCB design specifications.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of connector headers from Fischer Elektronik. The series provides various configurations for different row counts and contact numbers. The SMD designation indicates surface mount capability, while the numeric codes specify the physical dimensions and contact arrangement within the product line.

Headers, Male Pins Replacement Considerations

Check Fischer Elektronik datasheets for alternative part numbers within the SL 11 series that match the required contact count and row configuration. Verify mechanical compatibility and pin spacing before substituting.
