SL 11 SMD 078 62 G SM

Headers, Male Pins Overview

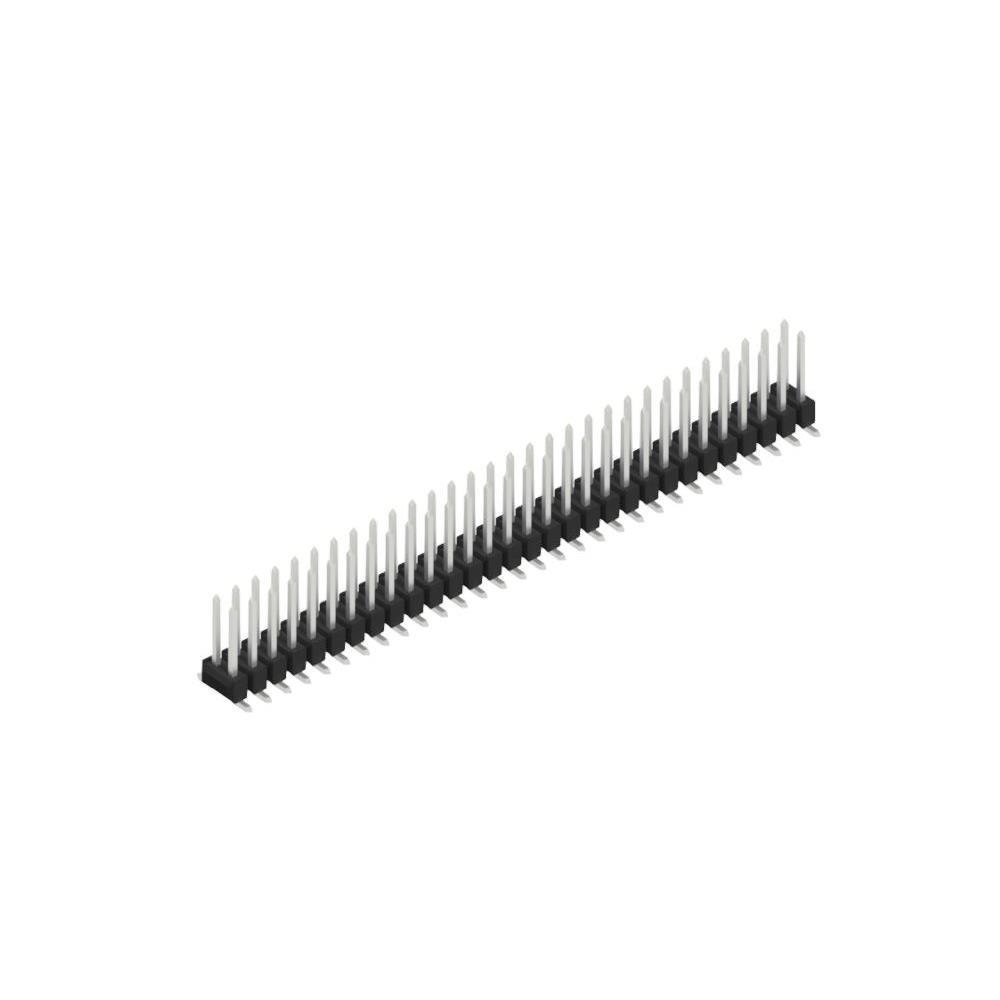

The Fischer Elektronik SL 11 SMD 078 62 G SM is a surface mount male header connector featuring 62 positions with a 2.54 mm (0.100 inch) pitch. It utilizes a two-row configuration and gold-plated contacts for reliable signal transmission. The unit is designed for reflow soldering processes, ensuring secure attachment to printed circuit boards. Constructed with polyamide insulation and copper tin alloy contacts, it supports an operating temperature range of -40°C to 163°C.

Headers, Male Pins Feature Summary

• Surface mount design compatible with automated pick-and-place assembly
• Gold-plated contact surfaces ensure corrosion resistance and stable conductivity
• Two-row male pin configuration provides high-density interconnection capabilities

Headers, Male Pins Applications

• High-density electronic board interconnections
• Automated manufacturing environments requiring surface mount technology
• Industrial control systems needing robust signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G SM' against official Fischer Elektronik documentation to confirm gold plating and bar magazine packaging specifications. Ensure compatibility with standard reflow soldering profiles. Cross-reference the 62-position count with approved datasheets to prevent ordering errors related to similar series variants.

Headers, Male Pins Selection Notes

Choose this component when high-density surface mount headers are required for industrial applications. The gold plating offers superior durability compared to tin alternatives in corrosive environments. Verify that the PCB footprint matches the 2.54 mm pitch requirements and that the two-row layout fits within the available board space constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 SMD series, which focuses on surface mount male headers. The series offers various pin counts and plating options to suit different density and environmental needs. The SL 11 variant specifically addresses applications requiring reliable, high-pin-count connections through automated assembly processes.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for direct equivalents within the SL 11 SMD family. Verify that any substitute maintains the 2.54 mm pitch, two-row structure, and gold plating specification to ensure mechanical and electrical compatibility.
