SL 11 SMD 130 50 S

Headers, Male Pins Overview

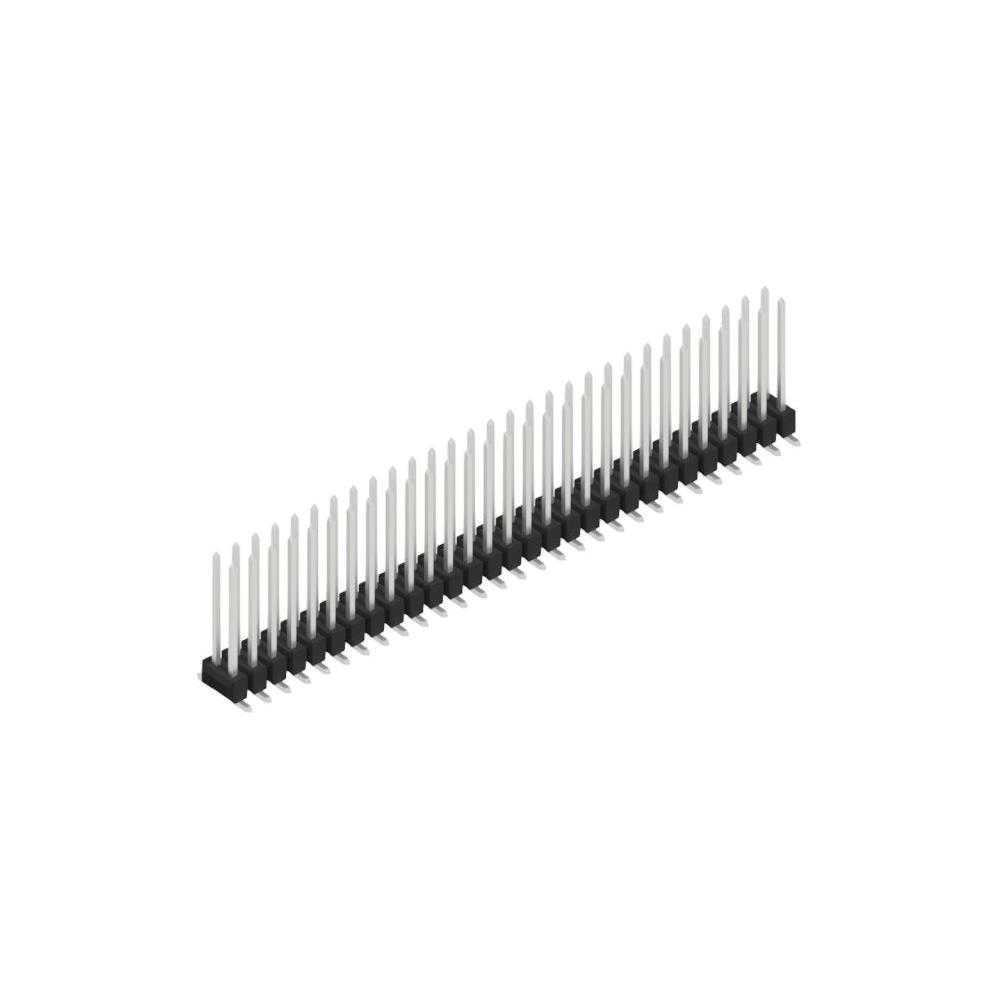

The SL 11 SMD 130 50 S is a surface-mount header connector manufactured by Fischer Elektronik. It features 50 positions arranged in two rows with a 2.54 mm (0.100 inch) pitch. The connector utilizes male pins with selective gold plating on the mating interface and tin plating on the tail for soldering. Constructed from glass-fiber reinforced PA 4.6, it supports a nominal current of 3 A and a voltage rating of 250 V AC. The operating temperature range spans from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Surface-mount design for automated PCB assembly
• Selective gold plating ensures reliable signal integrity
• High-temperature resistant PA 4.6 insulating body

Headers, Male Pins Applications

• Industrial control systems
• Telecommunications equipment
• Medical devices

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates selective gold plating on contact tips as per official datasheets. Confirm pin count matches the '50' designation. Ensure compatibility with standard reflow soldering profiles up to 260°C. Check RoHS compliance status if required for specific regional regulations.

Headers, Male Pins Selection Notes

Select this model for applications requiring robust surface-mount connectivity with high thermal stability. The 2.54 mm pitch suits general-purpose board-to-board or wire-to-board connections. Consider the 3 A current rating for power distribution needs. Verify mechanical retention requirements against push-pull or standard header mounting styles.

Headers, Male Pins Part Context

This component belongs to the SL 11 SMD series of precision connectors designed for compact electronic assemblies. The series offers various pin counts and row configurations. The '130' variant typically denotes specific housing dimensions or locking features within the product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch, 50-pin count, and dual-row surface-mount configuration. Cross-manufacturer replacements must match the 0.100 inch spacing and compatible terminal geometry.
