SL 12 SMD 031 34 G B SM

Headers, Male Pins Overview

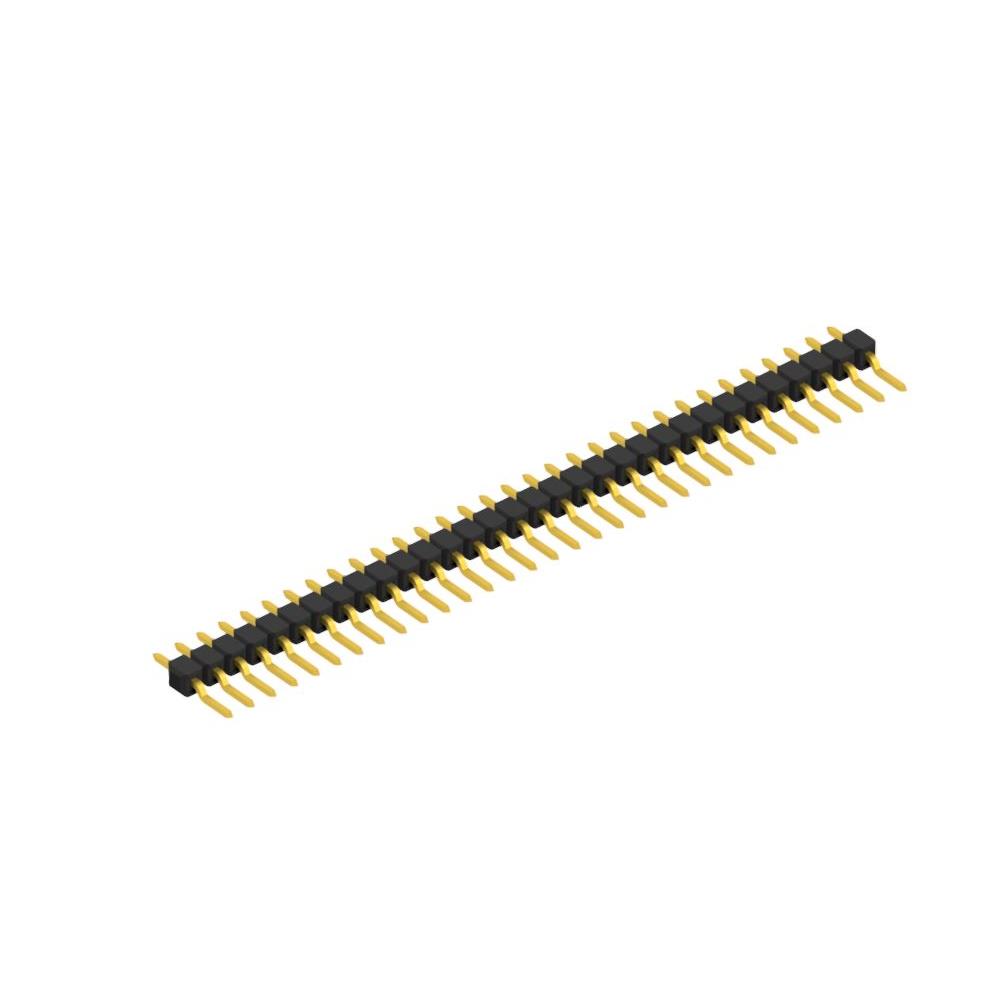

The SL 12 SMD 031 34 G B SM is a surface mount male header from Fischer Elektronik's SL 12 SMD series. It features 34 positions with a single row configuration and a 2.54 mm pitch. The connector utilizes PA 4.6 GF insulating body material rated UL 94 V-0. It supports a temperature range of -40°C to +163°C and withstands soldering at 260°C for 10 seconds. The component is designed for pick-and-place assembly using pad and bar magazine packaging.

Headers, Male Pins Feature Summary

• Surface mount design compatible with automated pick-and-place equipment
• Single row male header configuration with 2.54 mm spacing
• High-temperature resistant PA 4.6 GF insulating body

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Automated manufacturing environments requiring surface mount headers
• High-density circuit board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating and insulation material specifications. Ensure compatibility with standard SMT reflow profiles and check for required auxiliary components such as mating connectors or retention hardware. Confirm package type matches production requirements.

Headers, Male Pins Selection Notes

Select this component when a high-count, single-row surface mount header is required for dense PCB layouts. Consider the thermal stability of the PA 4.6 material for applications involving elevated operating temperatures. Verify that the 2.54 mm pitch aligns with existing board design constraints and mating connector standards.

Headers, Male Pins Part Context

This part belongs to the SL 12 SMD series of precision-engineered electronic components by Fischer Elektronik. The series offers various pole counts and configurations tailored for surface mount technology. These headers are designed for reliable electrical connections in modern electronics manufacturing, emphasizing compact dimensions and robust mechanical performance.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for direct substitute part numbers within the SL 12 SMD family. Verify dimensional compatibility and pin count before considering alternative suppliers. No cross-manufacturer substitutes are confirmed in public data.
