SL 16 SMD 107 56 S P

Headers, Male Pins Overview

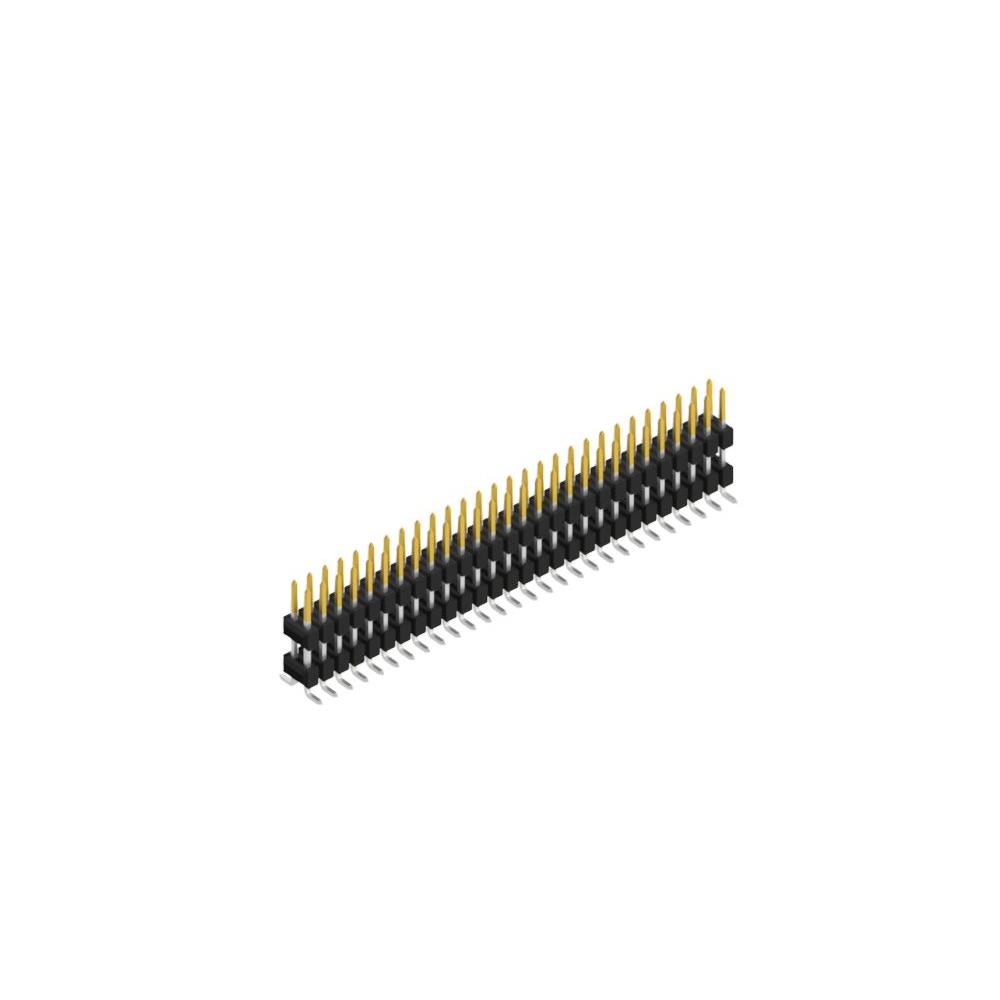

The SL 16 SMD 107 56 S P is a surface mount connector header manufactured by Fischer Elektronik. It features 56 positions with a 0.100 inch (2.54 mm) pitch, designed for interconnection applications. The component utilizes a PA 4.6 GF insulating body and supports a test voltage of 2000 V. It operates within a temperature range of -40°C to +163°C, with resistance to soldering heat up to 260°C for 10 seconds. The unit meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface mount design for direct PCB integration
• Stacked PCB interconnection capability with customizable insulator length
• High dielectric strength insulation material

Headers, Male Pins Applications

• Interconnections of stacked PCBs
• Electronic assembly requiring surface mount headers
• Customizable length interconnect solutions

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure correct pin count and configuration. Confirm that the surface mount footprint matches the target PCB layout dimensions. Check for any recent updates to the insulating body material specifications or thermal ratings prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density surface mount header is required for stacking printed circuit boards. Consider the 0.100 inch pitch for standard spacing requirements. Evaluate the need for customizable total length options if the application demands specific vertical clearance adjustments between board layers.

Headers, Male Pins Part Context

This part belongs to the SL 16 SMD 107 series from Fischer Elektronik, which specializes in PCB connectors and male headers. The series offers various position counts and allows for customer-specific modifications to the insulator length. It is designed for reliable interconnections in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for confirmed substitute part numbers within the same series. Verify compatibility regarding pitch, mounting style, and contact count before substituting.
