SL 17 SMD 058 20 G B SM

Headers, Male Pins Overview

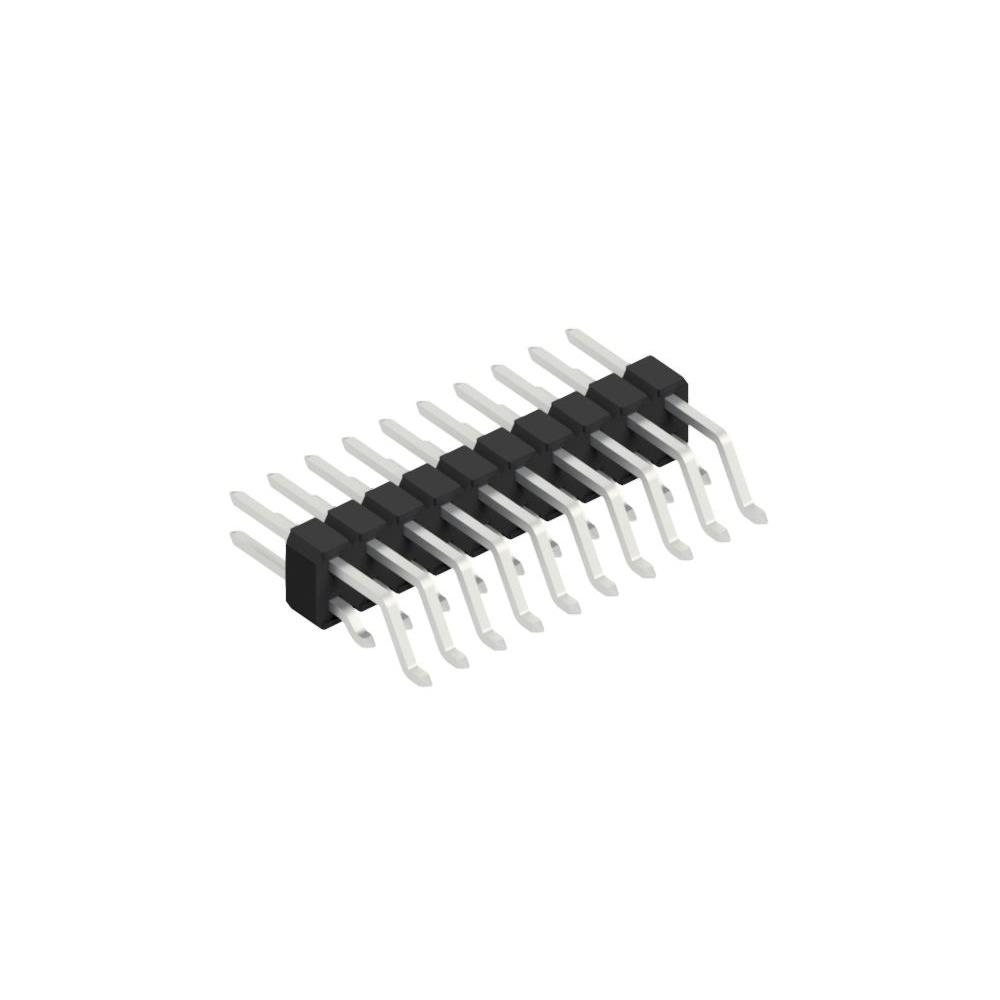

The SL 17 SMD 058 20 G B SM is a surface-mount male header connector from Fischer Elektronik. It features 20 positions arranged in two rows with a 2.54 mm pitch and 2.00 mm row spacing. The contacts are gold-plated CuSn alloy, ensuring low contact resistance of ≤5 mΩ. Rated for 3 A current and 250 V AC, it withstands 2000 V dielectric voltage. The housing is made of PA 4.6 plastic rated UL 94 V-0. It supports pick-and-place assembly via bar magazines.

Headers, Male Pins Feature Summary

• Surface-mount design compatible with automated pick-and-place equipment
• Gold-plated contacts for reliable signal transmission
• High dielectric strength insulation material

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Automated PCB assembly lines

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm plating thickness and packaging format. Ensure compatibility with standard SMD reflow profiles. Confirm that the selected variant matches the required pin count and mechanical dimensions for the target PCB layout.

Headers, Male Pins Selection Notes

Select this component when surface-mount technology is required for high-density board-to-board applications. The 2.54 mm pitch offers standard spacing compatibility. Consider the thermal stability and current rating for the specific circuit requirements.

Headers, Male Pins Part Context

This part belongs to the SL 17 SMD series of male headers. The series includes various pole counts and configurations. It is designed for robust electronic interconnects in industrial and consumer electronics.

Headers, Male Pins Replacement Considerations

Check for identical pitch, row count, and mounting style. Verify electrical ratings match or exceed original requirements. Ensure housing material and flange type are compatible.
