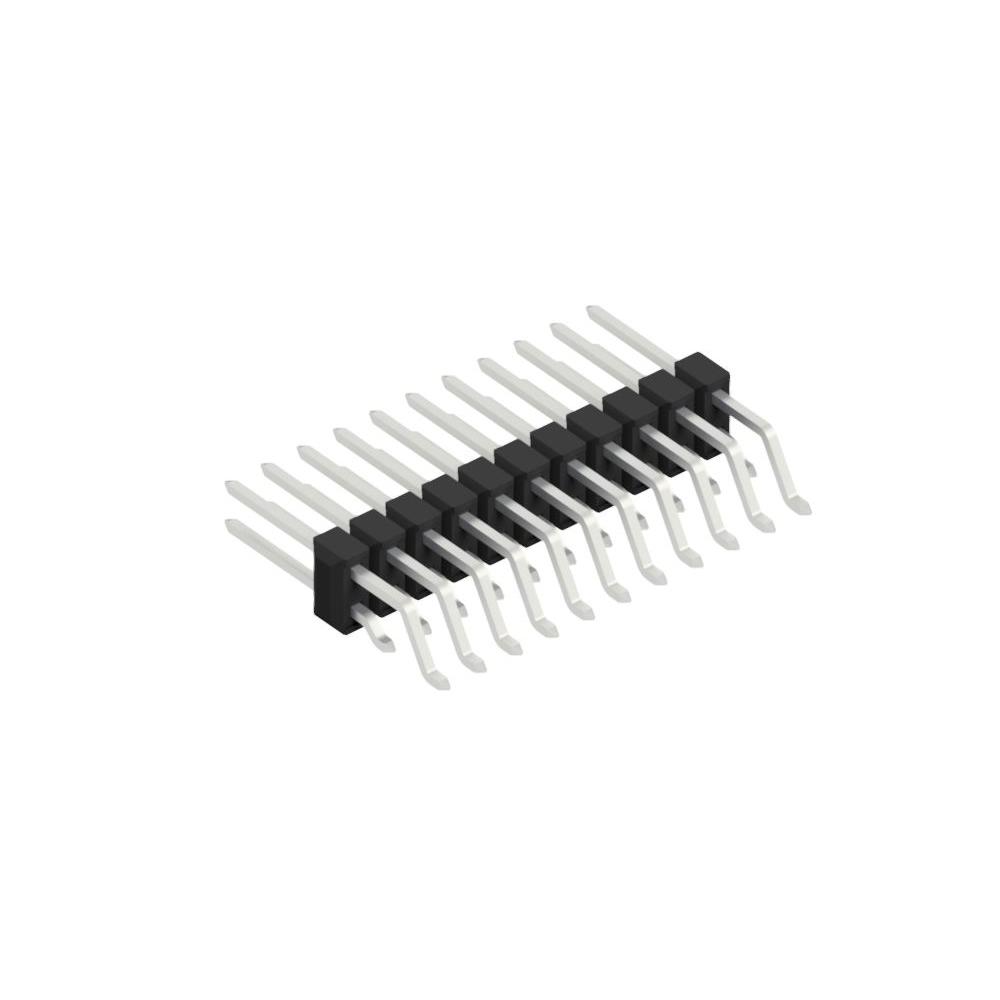

SL 17 SMD 083 20 G

SL 17 SMD 083 20 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 17 SMD 083 20 G

• Description：0.635 MM
• Series：SL 17 SMD 083
• Mfr：Fischer Elektronik
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：20
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.327" (8.30mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.110" (2.80mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：7.87µin (0.200µm)
• Contact Finish - Post：Gold
• Contact Material：Copper Tin
• Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
• Features：-
• Operating Temperature：-40°C ~ 163°C
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 17 SMD 083 20 G
