SL 18 042 34 S

Headers, Male Pins Overview

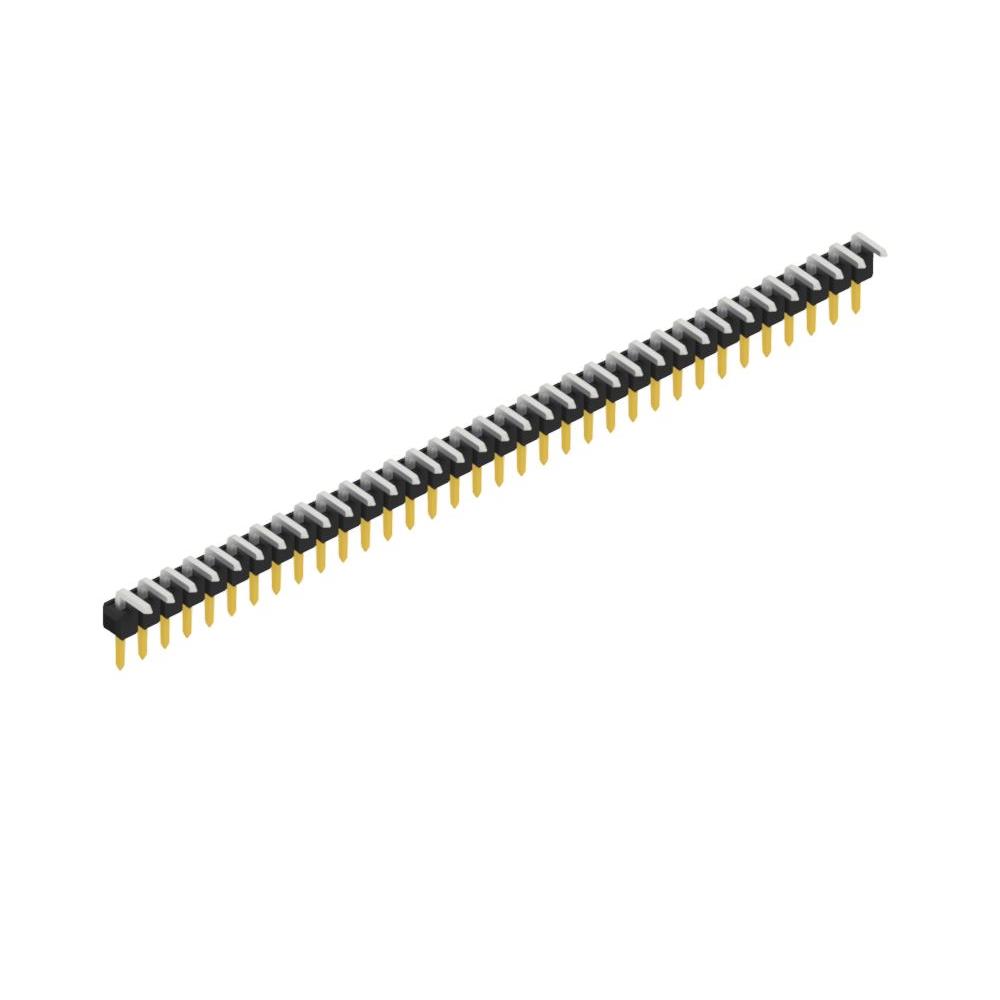

The SL 18 042 34 S is a male pin header connector manufactured by Fischer Elektronik. It features a 34-position configuration with a 2.54 mm (0.100 inch) pitch. The component utilizes a copper-tin alloy contact material with selective gold plating on the contact surfaces to ensure reliable electrical performance. Designed for through-hole mounting, this straight header facilitates secure PCB connections in electronic assemblies requiring robust signal transmission.

Headers, Male Pins Feature Summary

• Through-hole mounting design for stable PCB integration
• Selective gold-plated contacts for corrosion resistance
• Copper-tin alloy construction for mechanical durability

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control system board-to-board linking
• Consumer electronics assembly headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the official Fischer Elektronik datasheet to confirm exact contact surface specifications and terminal type. Ensure the selected variant matches the required through-hole footprint and pin count for the target application. Cross-reference the part number with authorized distributors to obtain current technical documentation and compliance certificates before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a 34-pin male header with a standard 2.54 mm pitch is required for through-hole applications. Consider the copper-tin alloy material and selective gold plating for environments where contact reliability and corrosion resistance are critical. Verify that the straight orientation and board thickness compatibility align with the mechanical constraints of the intended PCB layout and assembly process.

Headers, Male Pins Part Context

Fischer Elektronik specializes in connectors, heat sinks, and thermal materials. The SL 18 series represents their line of male pin headers designed for various electronic industries. This specific model belongs to a family of standardized connectors offering different pin counts and configurations to meet diverse connection needs in modern electronic manufacturing.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik cross-reference list for verified substitute part numbers. Generic equivalents may differ in contact material or plating quality. Do not assume interchangeability without verifying mechanical dimensions and electrical ratings against the original datasheet specifications.
